UBL – Under Bed TV Lift

Call for Price

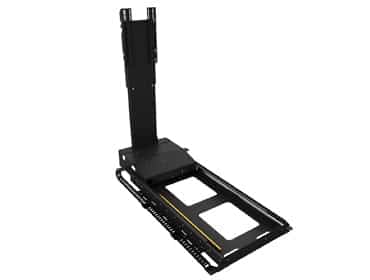

The Under Bed TV Lift is a unique and impressive mechanism that stores a flat screen under a bed, negating the need for cabinetry at the foot of the bed. Compact and sleek in design, the Under Bed TV Lift offers an alternative to traditional flat screen TV lifts and with its pop up design, helps create a different dimension to the interior design of a room. (For Under Bed TV Lift with swivel see the UBLS.)

  • Full Cable Management
  • Compact design for minimum spatial requirements
An electric flap is available as an optional extra.


Length in closed position 1420 mm
Depth under bed 255 mm
Max height in vertical position 1480 mm
Max screen height 730 mm
Max screen width 1250 mm
Max screen depth 60 mm
Max weight 35 kg
Screen sizes 32-60”
Control options RS232 \ Contact Closure \ IR
Movement type Motorised
Shipping dimensions 840 x 1580 x 460 mm
Shipping weight 40 kg

Additional information


UBL, UBL With End of Bed Flap
