LSM-BE – Lift System Medium Box Enclosure

£1,860.00£2,015.00

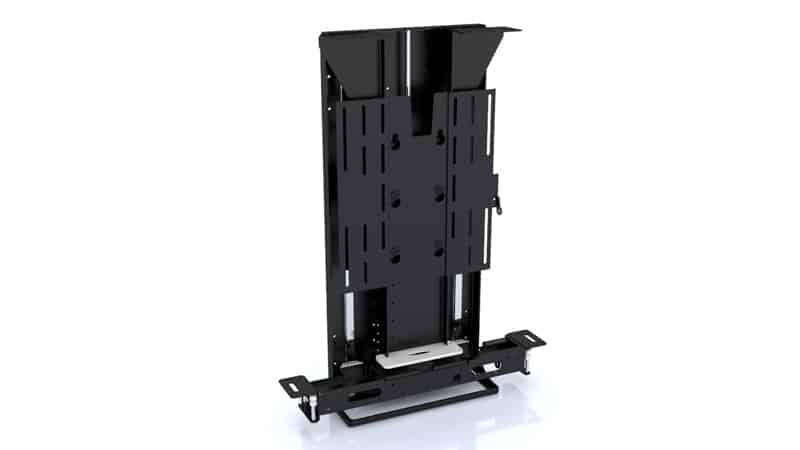

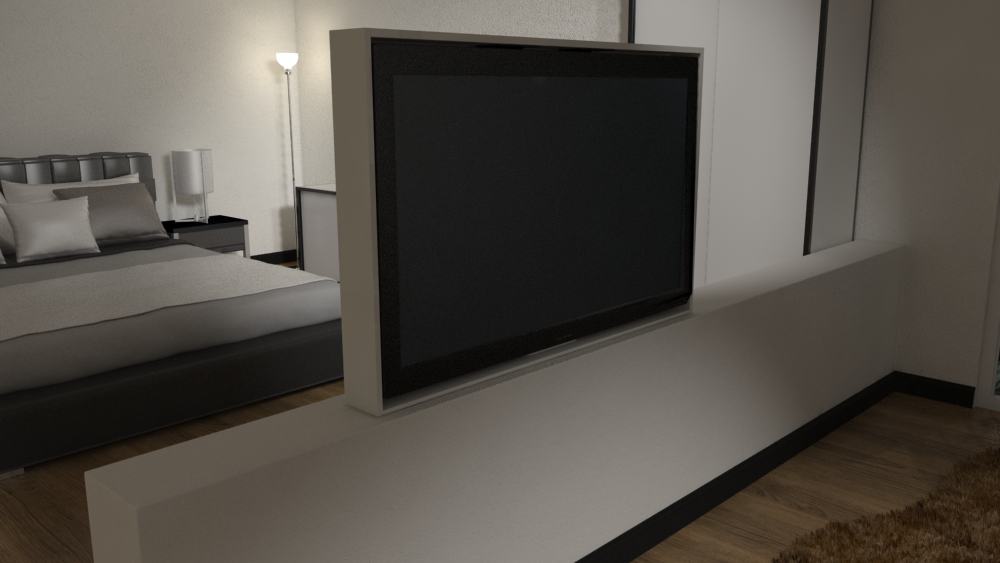

The LSM-BE TV Lift mechanism is perfect when a compact lift also requires a screen enclosure to hide the connections at the rear of the TV. Ideal for use when the rear of the TV lift can be seen in a room the LSM-BE allows the cabinet maker to include a matching screen surround into their furniture design. For an LSM-BE with Swivel see the LSM-S-BE.

Clear
SKU: N/A Category:

Description

  • Quiet and Smooth Action at Approximately 40mm(1.6″) per second
  • Full cable management
  • Wide range of mounting options
  • 24V DC motor – suitable for direct DC supply
  • Marine Suitable Robust Beam

                   Colour | Height | Weight | Screen Size| Control Options

LSM-BE4 | Black | 675 mm | 50 kg | 42-50″ | RS232 / Contact \ Closure \ IR | Motorized |

LSM-BE5 | Black | 735 mm | 50 kg | 50-55″ | RS232 \ Contact \ Closure \ IR | Motorized |

LSM-BE6 | Black | 805 mm | 50kg | 55-60″ | RS232 \ Contact \ Closure \ IR \ Motorized |

LSM-BE7 | Black | 915 mm | 50kg | 60-65″ | RS232 \ Contact \ Closure \ IR \ Motorized |

Additional information

Availability:

LSM-BE4, LSM-BE5, LSM BE6, LSM BE7
