ML Heavy Duty Lift Mechanism

ML Heavy Duty Lift Mechanism

Call for Price

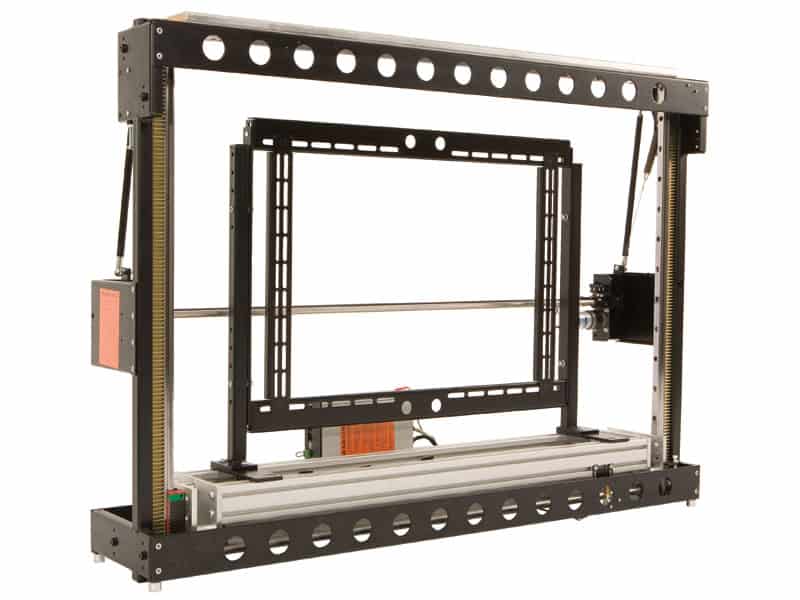

The Heavy Duty TV Lift is a mechanism that employs the same iconic drop and roll flap mechanism as the Plasma Lift range. Built with a rack and pinion system, the elaborate guide system ensures a smooth and robust lifting action. Ideal for indoor marine applications and for large screens over 40” or where you wish to have a deep speaker or VC Camera mounted with the screen. (For ML with swivel option see – MLS)

SKU: N/A Category:


  • Unique drop and roll flap mechanism
  • Full Cable Management
  • Custom sized to suit exact size of screen
  • Accurate and smooth guide system
  • Positively driven rack system for secure and robust lifting
  • Custom frames for deeper screens and speakers

ML      |     ML-D375

Screen Depth :   155mm  | 205mm

Max Weight:         120kg | 120kg

Screen Sizes:       40-75″ | 40-75″

Control Options:  RS232 \ Contact Closure \ IR

Movement Type: Motorized | Motorized


Additional information


ML, ML-D375
