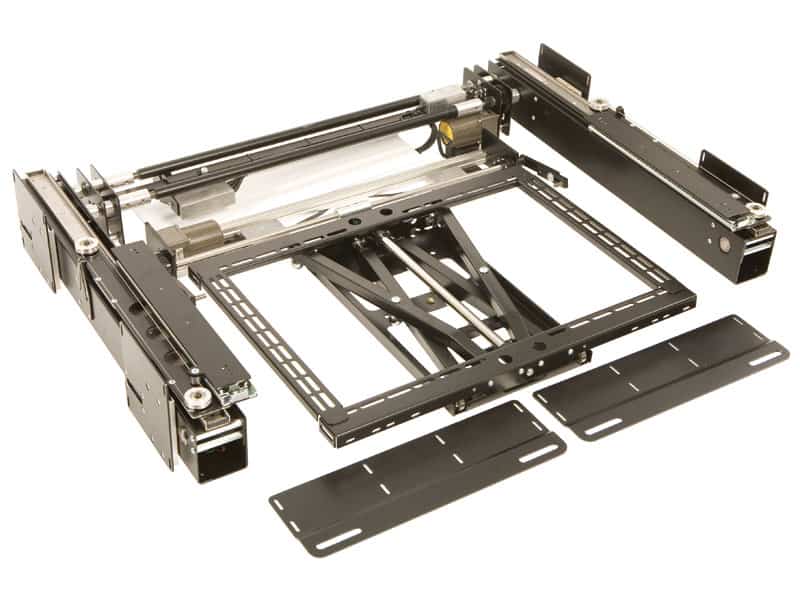

SPS – Sliding Panel Mechanism


The Sliding Panel Mechanism is our reference moving panel mechanism and allows complete concealment of a flat screen TV. The mechanism takes a panel inwards and moves it out of sight behind the surrounding panel work before advancing the screen to sit flush with the wall. A distinctively brilliant design, this one-of-a-kind sliding mechanism offers the ultimate in look, functionality and wow factor. Available in a host of options, theSliding Panel Mechanism allows you to design a wall or cabinet with complete freedom.

  • Range of single panel and split panel options
  • Space efficient design
  • Wide range of cabinetry and wall design options
  • Unique Functionality
Max weight of movie panel 15 kg 15 kg 15 kg
Max weight 50 kg 50 kg 50 kg
Screen sizes 37-55” 50-65” 60-80”
Control Options RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR
Movement type Motorised Motorised Motorised
Shipping Dimensions 800x1200x500 mm 800x1500x800 mm TBC
Shipping weight 60 kg 80 kg TBC

Additional information


SPS800, SPS1200, SPS1600
