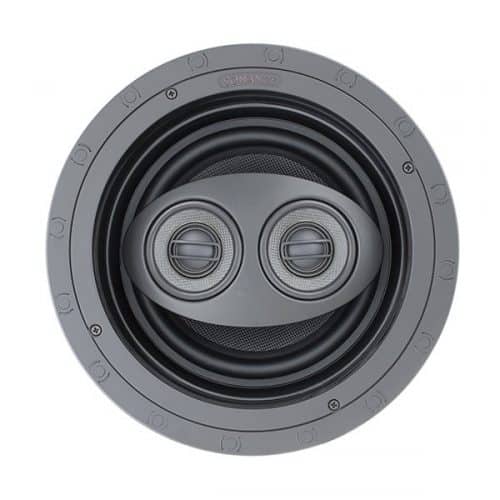

Sonance Visual Performance VP86R SUR/SST 8″ round single stereo/surround speaker (each)

Call for Price

From the company that invented the category, comes the best sounding, best looking and most complete range of in-wall and in-ceiling speakers ever. Visual Performance® Series comes in various shapes and sizes to compliment down lights and décor and a complete range that allows you to enjoy a consistent aesthetic for any application in any room.

SST = Single Stereo Technology, mono summing SUR = Surround SST/SUR is a combination of SST and SUR in one speaker
  • Uses a switch on the crossover cover to select between SST or SUR
Absolute best sonic performance at all price points
  • Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
Latest high-tech driver and tweeter material technology
  • Improved low frequency performance
  • Improved driver cone materials
  • Low diffraction driver design
  • Pivoting woofers on VP62R, VP66R and VP86R
  • Chambered midrange and tweeter design on all models
The chambered tweeter design does the following
  • Lowers the resonance frequency of the tweeter
  • Allows for a lower crossover frequency to the woofer
  • Reduces the back pressure on the tweeter dome
  • Reduces the distortion of the tweeter near the crossover frequency
Easier to install
  • Easier to access Roto-Lock® screws
  • Removed metal hang tabs
  • One-piece paintable grille with peel and stick scrim cloth for easier painting
  • Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials
Tweeter Two 1″ (25mm) powder coated aluminium dome, Ferrofluid-cooled, in acoustic back chamber
Mid Range Two 3″ (76mm) Kevlar / Nomex laminated cone with a rubber surround
Woofer 8″ (203mm) Kevlar / Nomex laminated cone with a rubber surround, dual voice coil, pivoting
Frequency Response 34Hz – 20kHz ±3dB
Impedance 8 ohms nominal – 6 ohms minimum
Power Handling 5 watts minimum – 150 watts maximum
Sensitivity 91dB SPL (2.83V/1 meter)
Grille Perforated steel
Adjustments Rear SST to SUR switch on crossover cover
Dimensions (Dia. x D) 11 5/8″ x 5 7/8″ (295mm x 149mm)
Dimensions with Square Grille (W x H) 11 3/4″ x 11 3/4″ (299mm x 299mm)
Cut-Out Dimensions (Dia.) 10 1/8″ (257mm)
Shipping Weight 10 lbs (4.5kg) each
