Description
Absolute best sonic performance at all price points
- Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
Latest high-tech driver and tweeter material technology
- Improved low frequency performance
- Improved driver cone materials
- Low diffraction woofer and tweeter design
- Pivoting tweeter for improved frequency response in off-axis installations
- Chambered tweeter design on all models
The chambered tweeter design does the following
- Lowers the resonance frequency of the tweeter
- Allows for a lower crossover frequency to the woofer
- Reduces the back pressure on the tweeter dome
- Reduces the distortion of the tweeter near the crossover frequency
Easier to install
- Easier to access Roto-Lock® screws
- Removed metal hang tabs
- One-piece paintable grille with peel and stick scrim cloth for easier painting
- Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials

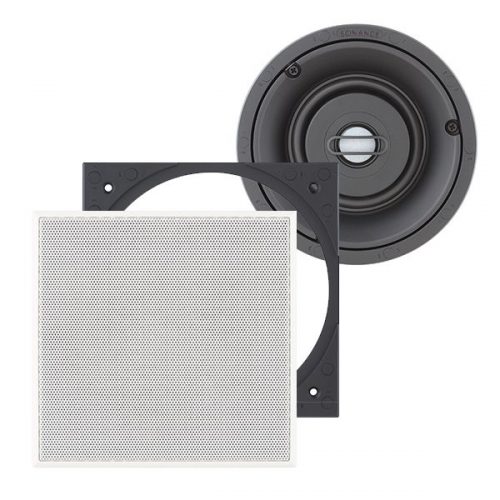

Square adaptor w/ grille can turn any round speaker into a square speaker
- Allows easy alignment of the square grille with other ceiling features.
| Tweeter | 1″ (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber |
| Woofer | 4 1/2″ (114mm) carbon fibre / Rohacell® laminated cone with a rubber surround |
| Frequency Response | 50Hz – 20kHz ±3dB |
| Impedance | 6 ohms nominal – 4 ohms minimu |
| Power Handling | 5 watts minimum – 100 watts maximum |
| Sensitivity | 90dB SPL (2.83V/1 meter) |
| Adjustments | Tweeter Level Switch -3dB Flat +3dB |
| Grille | Perforated steel |
| Dimensions (Dia. x D) | 6 7/8″ x 3 1/2″ (175mm x 89mm) |
| Dimensions with Square Grille (W x H) |
7″ x 7″ (178mm) |
| Cut-Out Dimensions (Dia.) | 5 7/8″ (149mm) |
| Shipping Weight | 6 lbs (2.8kg) pair |
