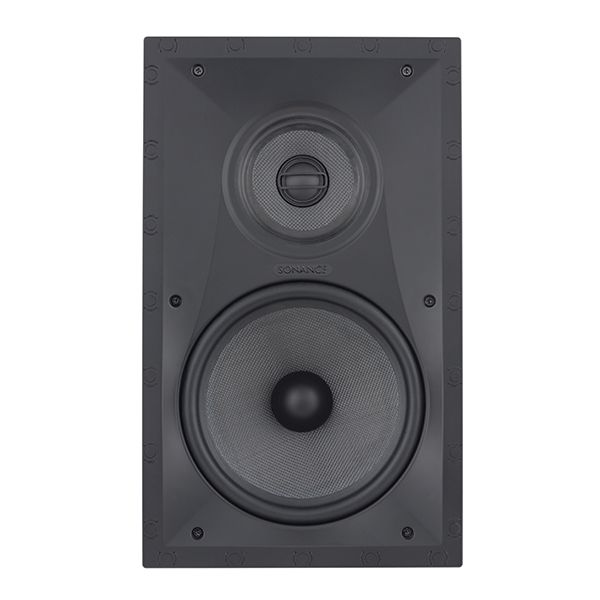

Description
Absolute best sonic performance at all price points
- Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
Latest high-tech driver and tweeter material technology
- Improved low frequency performance
- Improved driver cone materials
- Low diffraction woofer, and midrange tweeter design
- Pivoting midrange and tweeter for improved frequency response in off-axis installations
- Tweeter adjustment switch +/- 3dB
- Chambered midrange and tweeter design on all models
The chambered tweeter design does the following
- Lowers the resonance frequency of the tweeter
- Allows for a lower crossover frequency to the woofer
- Reduces the back pressure on the tweeter dome
- Reduces the distortion of the tweeter near the crossover frequency
Easier to install
- Easier to access Roto-Lock® screws
- Removed metal hang tabs
- One-piece paintable grille with peel and stick scrim cloth for easier painting
- Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials.
| Tweeter | 1″ (25mm) powder coated aluminium dome, Ferrofluid-cooled, pivoting, in acoustic back chamber |
| Midrange | 4″ (102mm) Kevlar / Nomex laminated cone with a rubber surround, pivoting |
| Woofer | 8″ (203mm) Kevlar / Nomex laminated cone with a rubber surround |
| Frequency Response | 34Hz – 20kHz ±3dB |
| Impedance | 8 ohms nominal – 6 ohms minimum |
| Power Handling | 5 watts minimum – 150 watts maximum |
| Sensitivity | 91dB SPL (2.83V/1 meter) |
| Adjustments | – |
| Grille | Perforated steel |
| Dimensions (W x H x D) | 10″ x 16″ x 3 7/8″ (254mm x 406mm x 98mm) |
| Cut-Out Dimensions (W x H) | 8 1/2″ x 14 1/2″ (216mm x 368mm) |
| Shipping Weight | 20 lbs (9kg) pair |
