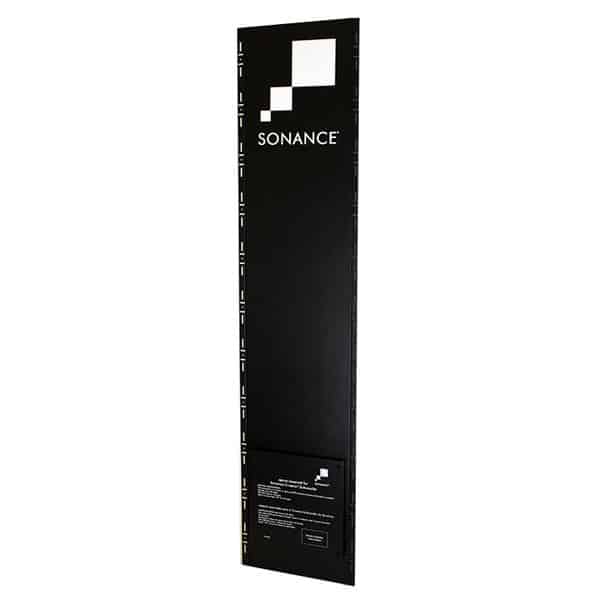

Sonance Cinema Series VP12SUB-NC Enclosure

Call for Price

Wooden enclosure to be installed for the Sonance Cinema 12-500 In-Wall Subwoofer. Sonance Cinema Series In-Wall Subwoofer enclosures are constructed from a combination of ½” and 1” MDF for superior isolation of bass and extruded aluminium bracing for minimal obstruction of airflow inside the enclosure. Mass damping of front and back walls of each enclosure and long strand fibreglass internal damping for standing wave dissipation is also incorporated. In addition, a floating enclosure design minimizes vibration transfer to adjoining rooms. Both enclosures fit in a standard 2 x 4 stud bay and a blank pre-construction plate is included for easy installation.

Description

Specifications
Internal Volume 1.20 cubic feet (34.3 liters) of volume
Material MDF wood box with long strand fiberglass acoustic dampening material
Compatibility Fits the Sonance Cinema SUB12-500 only
Enclosure Dims (WxHxD) 14 1/4” x 70 7/8” x 3 7/16” (362mm x 1800mm x 87mm)
Mounting Depth 3 3/8” (85.7mm)
Mounting Bracket Width 16 1/4” (409.5mm)
Hardware Integrated L-bracket mounting system included
