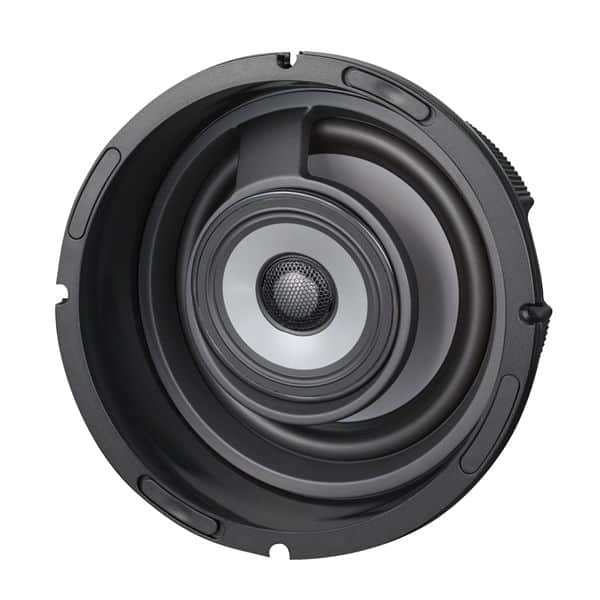

Sonance Architectural Series ASZ8R 8″ round speaker 175W MAX (pair)

Call for Price

As the first truly flush-mount speakers, the Sonance Architectural Series® extends your design vision by bringing form and function into balance. The Architectural Series in-ceiling speakers are designed to help minimize ceiling clutter, their paintable, micro-perforated metal or cloth speaker grilles blending into their surroundings and sitting flush with the ceiling plane. Beneath the subtle exterior of our in-ceiling speaker design is the Sonic Eye, creating accurate, full sound regardless of where the listener is located.

Tweeter 1″ (25mm) beryllium dome, ferrofluid cooled, pivoting
Midrange 4″ (102mm) beryllium cone, rubber surround, pivoting
Woofer 8″ (203mm) beryllium cone, rubber surround, pivoting
Frequency Response 30Hz – 20kHz ±3dB
Impedance 6 ohms nominal; 4 ohms minimum
Power Handling 5 watts minimum; 175 watts maximum
Sensitivity 91dB (2.83V/1meter)
Adjustments Tweeter and midrange level ±3dB
Finished Hole Size (Diameter) 10″ (254mm)
Finished Depth (with speaker) 6.04″ (153mm)
