PICSIDE – Picture Side

Call for Price

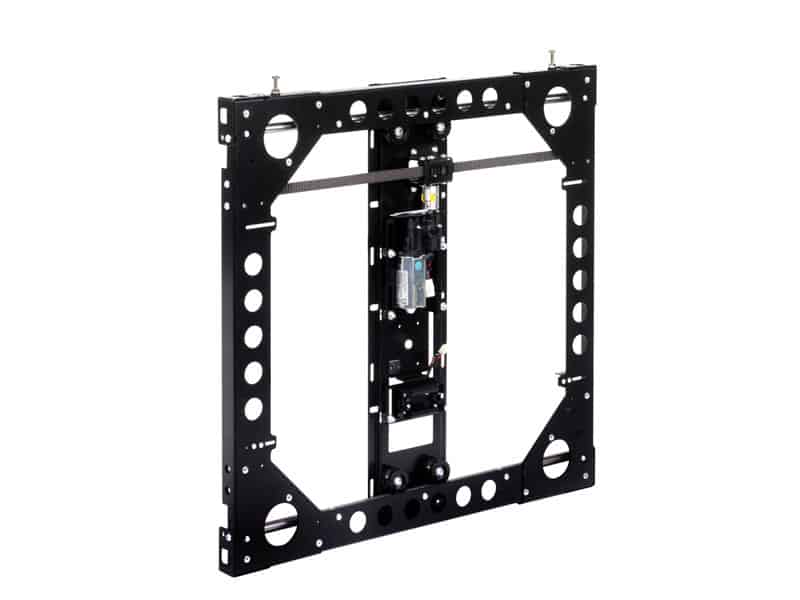

The Picture Side Mechanism is a horizontal moving panel mechanism that conceals a flat screen TV behind a picture or panel. Ideal for when vertical height is not available, the Picture Side Mechanism drives a panel left or right to conceal and reveal the screen. (See the PIC for a vertical movement mechanism or the PICSPLIT for a splitting panel mechanism)

Availability:

Clear

Quiet and smooth action with a ‘ramped’ start and finish motion profile
Surface mounted design for simplified installation
Vibration isolated components
Easy adjustment of mechanism end stops
Sophisticated electronics help prevent ‘finger trapping’

	PICSIDE1	PICSIDE2	PICSIDE3
Max weight of moving panel	10 kg	10 kg	10 kg
Max Travel	1184 mm	1435 mm	1690 mm
Screen Sizes	32-42”	42-55”	55-65”
Control options	RS232 / Contact closure / IR	RS232 / Contact closure / IR	RS232 / Contact closure / IR
Movement Type	Motorised	Motorised	Motorised
