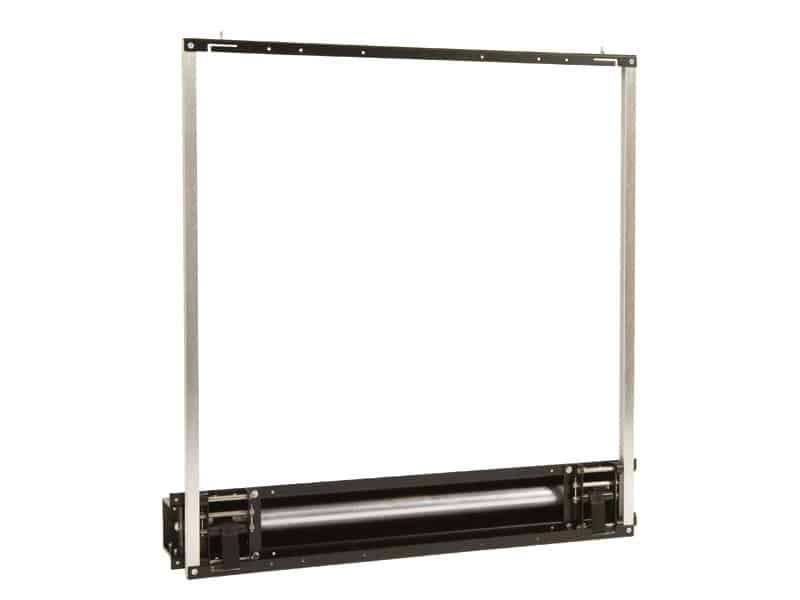

PIC – Picture Lift Mechanism

£930.00

The Picture Lift mechanism allows a flat screen television to be concealed in a recess behind a piece of art work. A range of travel options are available to allow any screen from 32” to 60” to be concealed. The single panel or picture can either raise or lower to reveal the screen – a brilliantly simple Picture Lift mechanism to conceal a TV screen in a wall. (See the PICSIDE for a horizontal movement mechanism or the PICSPLIT for a splitting panel mechanism.)

Clear
SKU: N/A Category:

Description

  • Range of travel distances
  • Smooth quiet motion
  • Option to combine with a motorized bracket
  • Complete sheet metal cassette ensures simple installation
PIC1 PIC2 PIC3
Depth within wall 70 mm 70 mm 70 mm
Max weight of moving panel 10 kg 10 kg 10 kg
Total travel of panel 560 mm 710 mm 860 mm
Screen sizes 32-40” 40-55” 55-60”
Control Options RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR
Movement Type Motorised Motorised Motorised
Shipping Dimensions 290x980x210 mm 300x970x280 mm 300x1270x210 mm
Shipping Weight 9.5 kg 9.5 kg 9.5 kg

Additional information

Availability:

PIC1, PIC2, PIC3
