LSM-TU-EFA – Lift System Telescope & Electric Flap

LSM-TU-EFA – Lift System Telescope & Electric Flap

£3,720.00£3,875.00

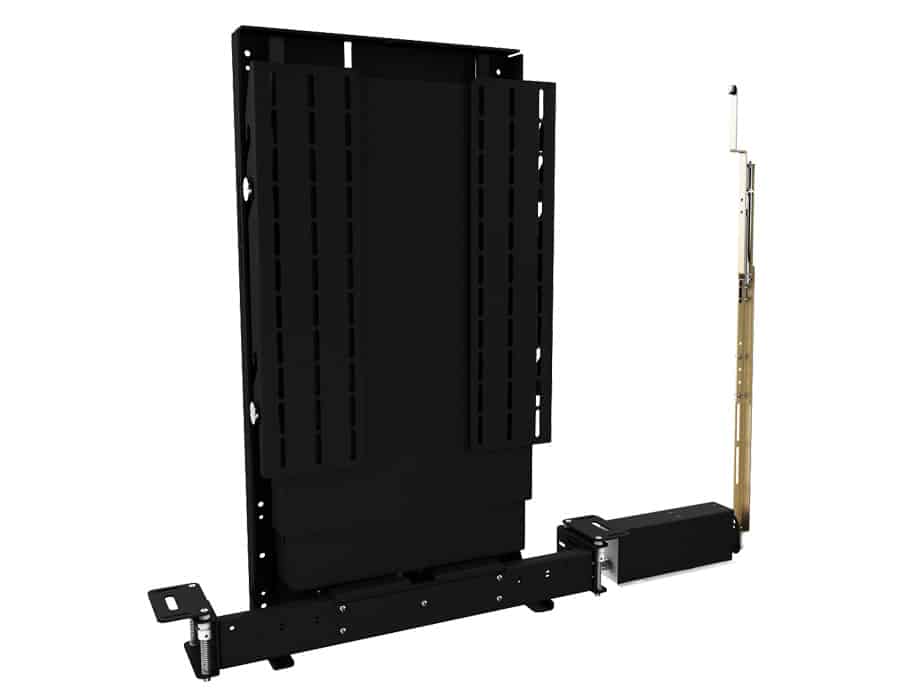

The LSM-TU-EFA TV Lift is a compact lift mechanism with extra height telescope capability, designed to house screens ranging between 50″ and 65″, with an electric flap. The electric lid is operated automatically before the screen rises, completing the automated appearance. The telescope allows the lift to raise the screen higher than standard without any extra cabinet height

SKU: N/A Category:

Description

  • Quiet and Smooth Action at Approximately 40mm(1.6″) per second
  • Full Cable Management
  • Wide Range of Mounting Options
  • 24V DC motor – suitable for direct DC supply
  • Robust lifting beam

LSM-TU-EFA4 | LSM-TU-EFA5 | LSM-TU-EFA6 | LSM-TU-EFA7

Colour:                     Black                   |  Black                  |  Black                 |  Black

Screen Height:    675mm                   | 735 mm              | 805mm             | 915 mm

Max Weight:       30 kg                        | 30 kg                 | 30 kg                   | 30 kg

Screen Sizes:      42-50″                      | 50-55″               |  55-60″                | 60-65″

Control Options:  RS232 / Contact Closure / IR | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR

Movement type:  Motorized             |  Motorized        |  Motorized         |  Motorized





Additional information

Availability:

LSM-TU-EFA4, LSM-TU-EFA5, LSM-TU-EFA6, LSM-TU-EFA7
