Description

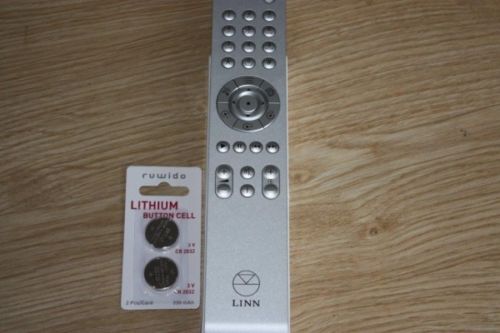

 Linn Remote

This Linn Remote IR handset can be used with ALL Linn DS/DSM products. Some functionality is configured by Linn Konfig.

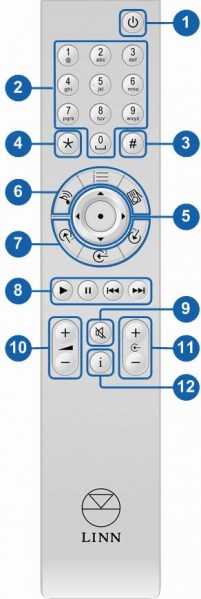

Basic Functions

—  SLEEP – Will put the unit into / out of Sleep mode.

—  Numerical Keys  – Numerical input.

#Press and hold for 2 seconds for HELP information e.g. IP address, MAC etc.

—   Track shuffle : ON/OFF

—  Navigation – select = up / down / left /right / enter keys for playlist navigation.

—  Left and right keys will seek through tracks during playback

—  DS Source Selection – For switching between “Songcast”,

—  “Playlist” and “Radio” sources on your DSM.

—  Input Source Selection – Direct source selection buttons.

see below for default settings and how to change them.

Transport Control: Play, pause, skip forward, skip back.

—  Press and hold pause will stop playback

—  MUTE – To mute / unmute volume.

—  VOLUME + , – – Volume + , -.

—  SOURCE + , – – Source + , -.

Information- changes information displayed on the DSM.

—  Front panel

—  Press and release – toggles different display modes e.g. track

—  Number, bit rate etc

—  Press and hold scrolls title / artist / album information
