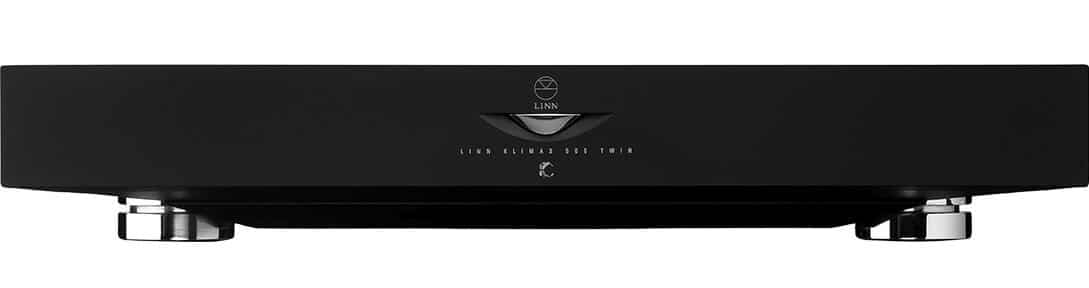

LINN Klimax Twin
A recipe for stereo perfection
The Linn Klimax Twin benefits from Two channels of Linn’s patented Chakra amplification, a machined-from-solid enclosure, and a Dynamik Power Supply make this our highest performing stereo amplifier. In fact, only a pair of Klimax Solos can power your system more effortlessly.
Just like the Solo, the Twin uses a machined-from-solid enclosure not only to look good, but also to provide electrical and mechanical isolation between the audio and power supply boards. The Chakra topology offers significantly increased power, reliability and efficiency, with less heat and distortion than conventional designs.
Use one Twin for a passive stereo set-up, and add more Twins to multi-amp your speakers or upgrade to a fully Aktiv set-up, connected to Klimax Exakt-boxes.
- Two channels of Linn Chakra power amplification
- 200 W per channel (into 4 Ω)
- Dynamik Power Supply
- Electrical and mechanical isolation between power and audio circuit boards
- Precision-engineered enclosure machined from solid aluminium
- Energy saving automatic signal-sensing circuitry
- Fault detection and protection against excessive loads
- Choice of binding posts or Neutrik speaker connections
Patented amp technology combines the speed and precision of monolithic chip with the robustness and smoothness of bi-polar transistors.
Chakra constantly adapts by using a monolithic at low currents and bi-polar transistors at higher levels. It’s a unique approach to transition between these technologies, guaranteeing precisely-controlled clean, silent power at all listening levels.
Powered by Linn Dynamik
We developed our own switch-mode power supply to generate stable, low noise power rails in a compact, cool-running package: critical to the performance of an amp.
Dynamik is the latest evolution, with higher mains noise isolation, more power and faster response; clearly outperforming bulky and noisy conventional power supplies.
All Linn power amps are designed to be efficient even when not in use. Auto signal-sensing detects the presence of an audio signal and minimises power consumption by reverting to sleep mode when inactive, while fault detection and protection mechanisms help safeguard your system against short circuit or excessive load damage.
Reference stereo power amp
|Number of Channels||Two|
|Max Output||200 W into 4 Ω|
|111 W into 8 Ω|
|Max Input||1000 W|
|Amp Technology||Linn Chakra|
|Power Supply||Linn Dynamik Switch Mode|

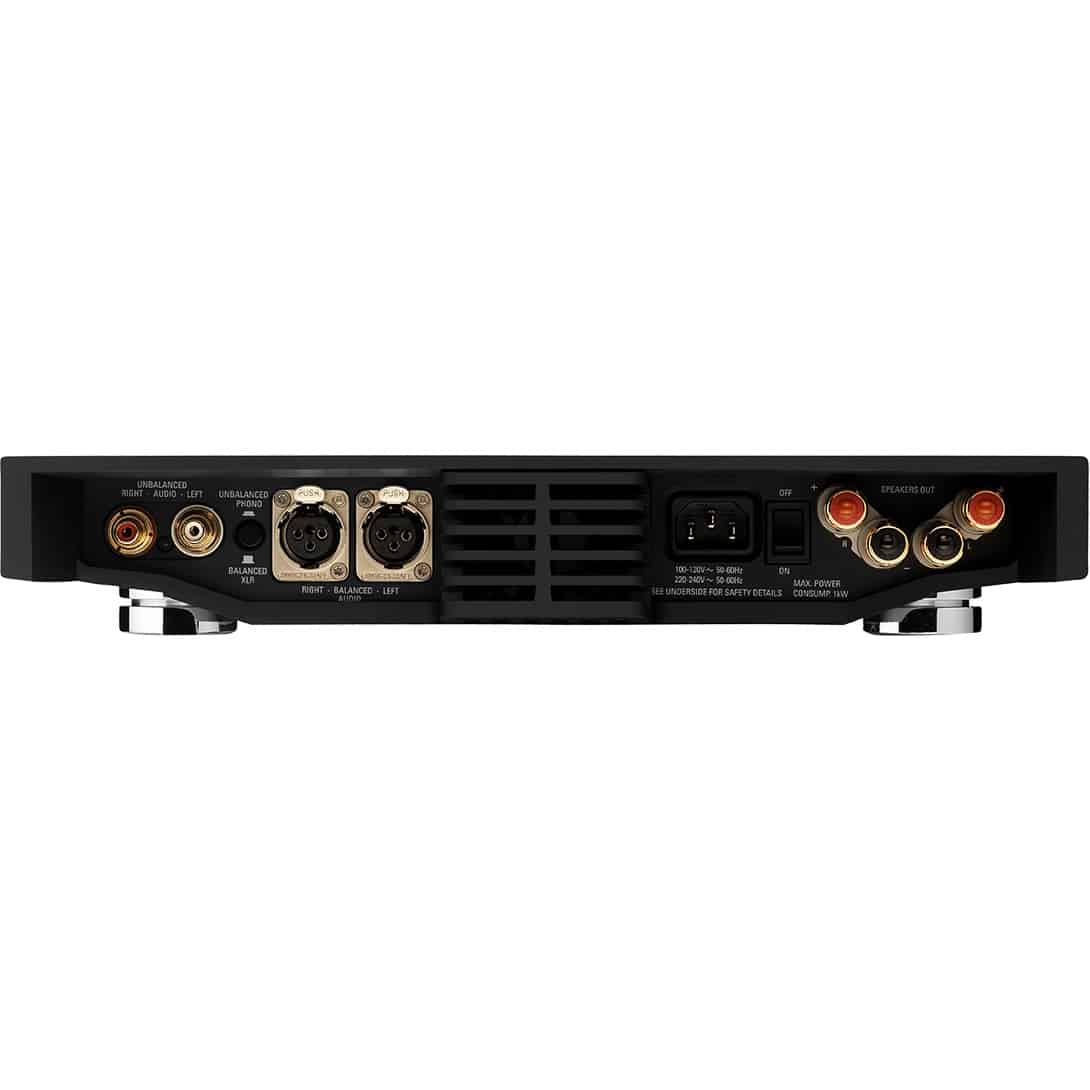

|Inputs||RCA phono (WBT) x2|
|Balanced XLR x2|
|Speaker Outputs||Banana/Binding posts (WBT) x4|
|Finishes||Anodised Silver or Black|
