LCP – Lutron Control Panel

£310.00£620.00

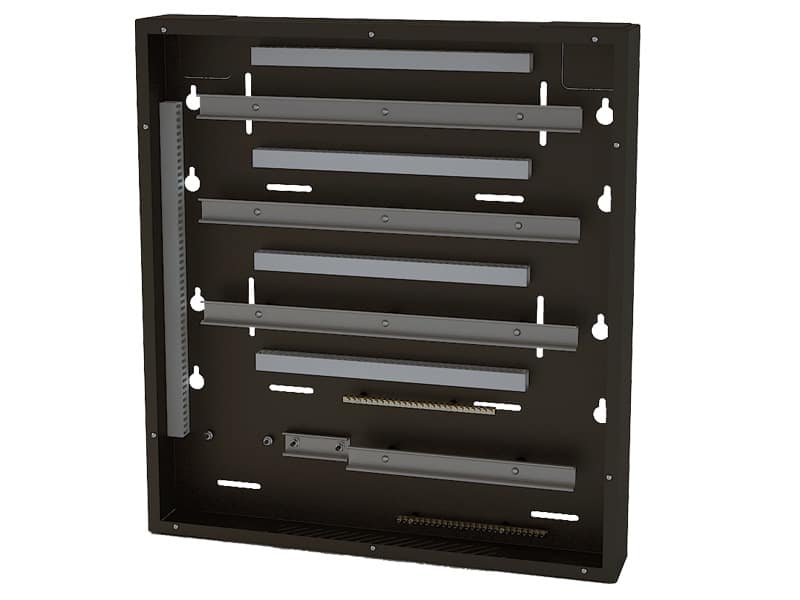

The Future Automation LCP (Lutron Control Panel) range are DIN rail enclosures that have been specifically designed to pair with the new Lutron Homeworks QS range.

This unique control panel is available in 5 different sizes, it incorporates the internationally recognised DIN rail system along with a range of neatly designed install assisting benefits such as; full integral cable management, dedicated earthing and neutral bars and a fully removable front cover making installation of your Lutron Homeworks QS system easy and tidy.
The enclosure itself has key mount slots to the rear to allow for easy installation and the overall finish is clean, simple and unobtrusive.

Developed in association with leading industry installers this unit is the only dedicatedLutron Homeworks QS Control panel that truly has Lutron installers at its heart.

For pre-wired version see LCP-RCBO

Clear
SKU: N/A Category:

Description

  • Full Cable Management Trunking
  • Easy Installation / Mounting
  • Removable Front Cover
LCP4 LCP5 LCP6 LCP7 LCP8
Colour Black Black Black Black Black
DIN Rails 4 5 6 7 8
Max Lutron Modules 6 8 10 12 14
Panel Dimensions (HxWxD) 750x690x100 mm 900x690x100mm 1050x690x100mm 1200x690x100mm 1350x690x100mm
Depth from wall 100 mm 100 mm 100 mm 100 mm 100 mm
Shipping dimensions 1170x830x220 mm 1170x830x220 mm 1170x830x220 mm  1470x830x220 mm 1470x830x220 mm
Shipping weight 24 kg 26 kg 28 kg 30 kg 34 kg

Additional information

Availability:

LCP4, LCP5, LCP6, LCP7, LCP8
