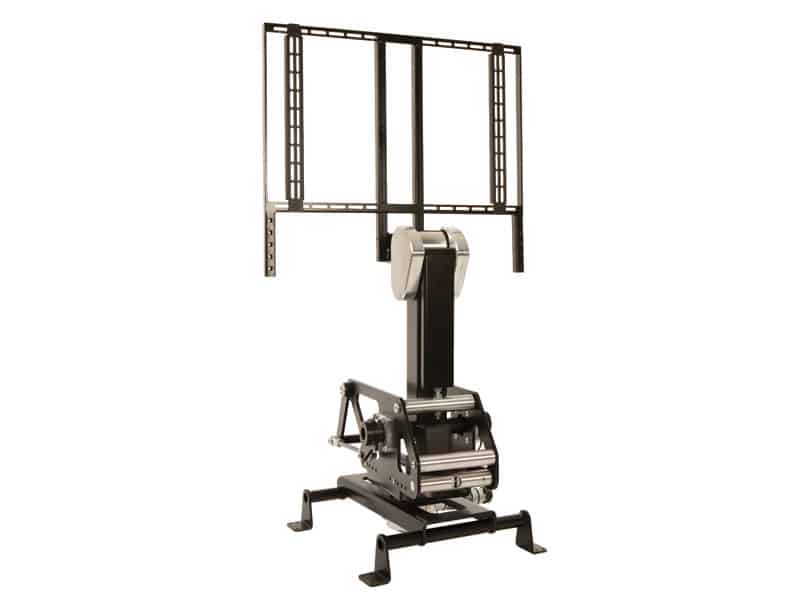

LAS – Lifting Arm & Swivel

Call for Price

The Lifting Arm with Swivel mechanism is truly one of a kind. Allowing a screen to be stored horizontally in a low level cabinet and then hinged up 90 degrees for viewing with a bi-directional swivel. The Lifting Arm is the only solution that allows low level chests or trunks to conceal large screens without the need for tall cabinetry. Ideal for end of bed applications or low level furniture – the Lifting Arm takes lift design to a new level. Also available as lifting arm without swivel feature – LA

  • Unique Design and Functionality
  • Near Silent Motor System
  • Full Cable Management
  • Programmable Swivel Options
  • Comprehensive Safety Switches
  • Ideal for low height applications
Height From Floor 515 mm
Max Screen Height 720 mm
Max Screen Width 550 mm
Max Weight 45 kg
Screen Sizes 40-55”
Control Options RS232 \ Contact Closure \ IR
Movement Type Motorised
Shipping Dimensions 800 x 900 x 550 mm
Shipping weight 65 kg
