Description

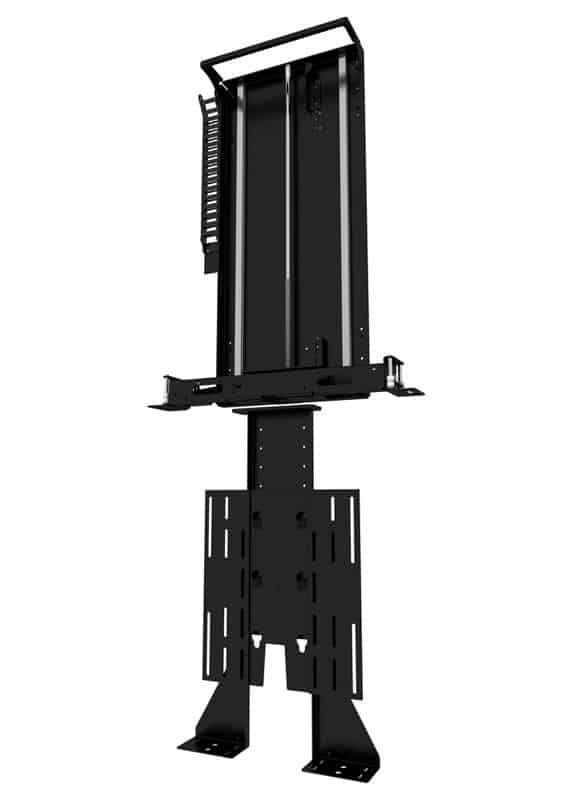

- I-LSM-S-BE 32-60″ Screens Inverted TV Lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing, then swivelled to different viewing angles. The I-LSM-S-BE is the perfect mechanism when a compact swivelling lift also requires a screen enclosure to hide the connections at the rear of the TV, ideal for use when the rear of the TV can be seen in a room.
- Quiet and Smooth Action at Approximately 40mm(1.6″) per second
- Full cable management
- Wide range of mounting options
- 24V DC motor – suitable for direct DC supply
- Marine suitable robust beam
I-LSM-S-BE3 | I-LSM-S-BE4 | I-LSM-S-BE5 | I-LSM-S-BE6 | I-LSM-S-BE7 | |
Colour | Black | Black | Black | Black | Black |
Max Screen Height | 564 mm | 615 mm | 675 mm | 745 mm | 855 mm |
Max Weight | 50 kg | 50 kg | 50 kg | 50 kg | 50 kg |
Screen Sizes | 37-40” | 42-46” | 48-50” | 50-55” | 50-65” |
Control Options | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR | RS232 / Contact Closure / IR |
Movement Type | Motorised | Motorised | Motorised | Motorised | Motorised |
