I-LSM-S-BE 32-60″ Screens

Price range: £2,904.00 through £3,146.00

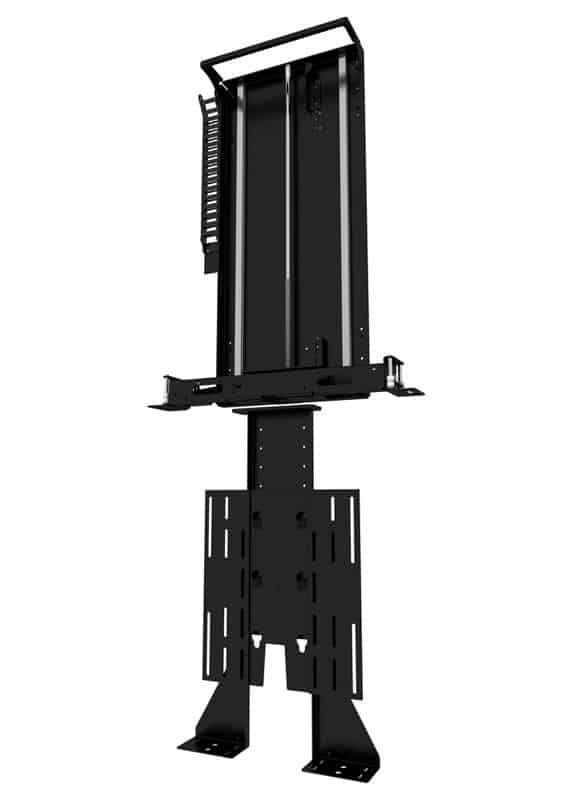

I-LSM-S-BE 32-60″ Screens Inverted TV Lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing, then swivelled to different viewing angles. The I-LSM-S-BE 32-60″ Screens are the perfect mechanism when a compact swivelling lift also requires a screen enclosure to hide the connections at the rear of the TV, ideal for use when the rear of the TV can be seen in a room.

I-LSM-S-BE 32-60″ Screens Inverted TV Lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing, then swivelled to different viewing angles. The I-LSM-S-BE is the perfect mechanism when a compact swivelling lift also requires a screen enclosure to hide the connections at the rear of the TV, ideal for use when the rear of the TV can be seen in a room.
Quiet and Smooth Action at Approximately 40mm(1.6″) per second
Full cable management
Wide range of mounting options
24V DC motor – suitable for direct DC supply
Marine suitable robust beam

	I-LSM-S-BE3	I-LSM-S-BE4	I-LSM-S-BE5	I-LSM-S-BE6	I-LSM-S-BE7
Colour	Black	Black	Black	Black	Black
Max Screen Height	564 mm	615 mm	675 mm	745 mm	855 mm
Max Weight	50 kg	50 kg	50 kg	50 kg	50 kg
Screen Sizes	37-40”	42-46”	48-50”	50-55”	50-65”
Control Options	RS232 / Contact Closure / IR	RS232 / Contact Closure / IR	RS232 / Contact Closure / IR	RS232 / Contact Closure / IR	RS232 / Contact Closure / IR
Movement Type	Motorised	Motorised	Motorised	Motorised	Motorised
