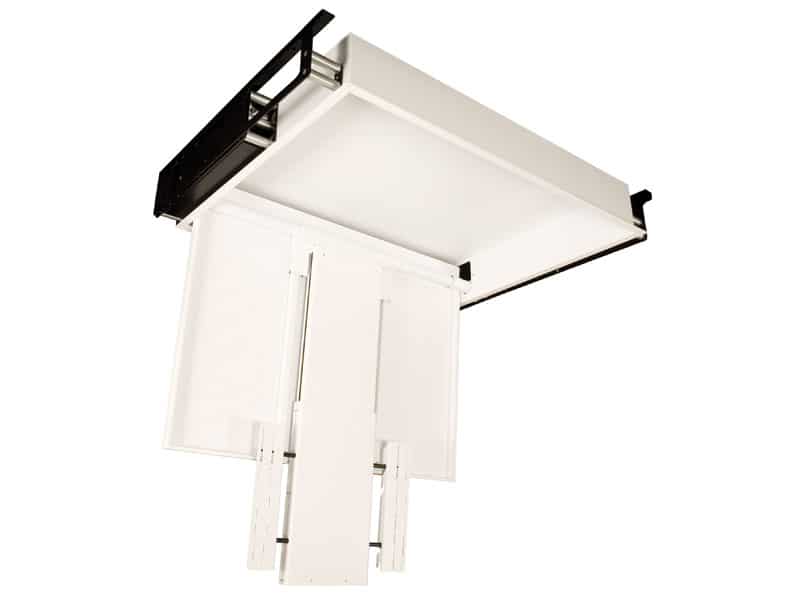

CHT – TV Ceiling Hinge & Telescope

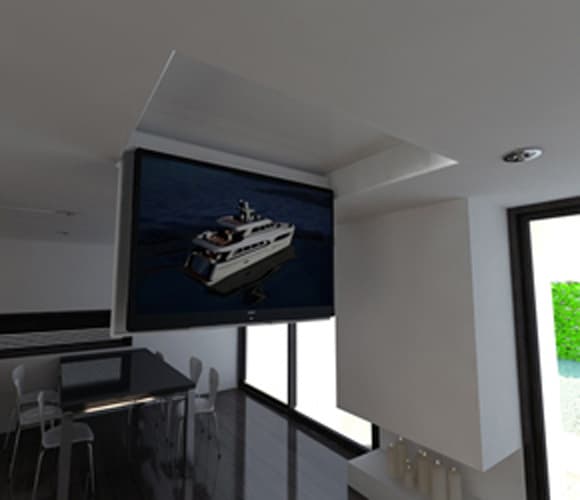

The Ceiling Hinge with Telescope allows a flat screen television to be concealed horizontally within a ceiling and then lowered into a room for the preferred viewing height. The near silent motor system adds to the effortless and smooth transition from the concealed to viewing position. Ideal for when there is limited ceiling void space, theCeiling Hinge with Telescope allows large screens to be concealed unobtrusively within relatively small ceiling areas and offers a great space saving option for when floor or wall space is not available. (For CH without telescope – CH, with swivel – CHS)

SKU: N/A Category:


  • Near Silent Motor System
  • Modular Format ensures simple installation
  • Range of standard sizes
  • Sized to suit Options available
Colour White White White
Height Within Ceiling 205 mm 205 mm 205 mm
Max Drop 600 mm 600 mm 600 mm
Max Screen Height 720 mm 820 mm 920 mm
Max Screen Width 1110 mm 1310 mm 1510 mm
Max Screen Depth 100 mm 100 mm 75 mm
Max Weight 50 kg 50 kg 50 kg
Screen Sizes 37-46 “ 46-55 “ 50-65 “
Control Options RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR
Movement Type Motorised Motorised Motorised
Shipping Dimensions 1200 x 1800 x 500 mm 1400 x 1900 x 500 mm 1500 x 2000 x 500 mm
Shipping Weight 115 kg 145 kg 195 kg
