Description
Components Overview
High Frequency driver
Dual Ring Radiator diaphragm with highly linear suspension and low loss surrounds for high clarity and clean transient response. Copper caps for better HF extension and lower distortion and wave-guide center plug, copper-clad aluwire
Woofer
Extra long excursion and Aluminum Short Circuiting Ring, 4-layer voice coil, anodized aluminum for improved heat dissipation, combined with Distortion Reduced Motor
Crossover
6 dB/octave low pass and 12 dB/octave high pass filter
- Very low distortion
- Very low power consumption
- Wide frequency response 65Hz to 40kHz
- Fast, easy and simple installation
- Suitable for a wide range of application, from HiFi Systems, Home Cinemas, Screening Rooms and smaller commercial applications

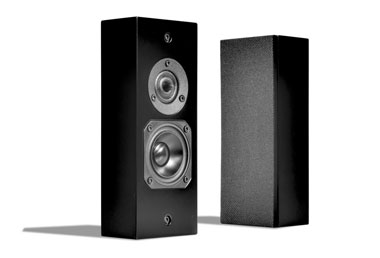

- Ultra-slim aesthetically pleasing cabinet design, designed to complement the latest LED and projection screen designs
SL Product Brochure
Speaker Comparison Table
Optional Baffles and Artwork (Price per screen)
| Baffle and Digital Print | 35cm x 27cm | £175.00 |
| Baffle and Getty Print | 35cm x 27cm | £305.00 |
| Baffle and Digital Print | 65cm x 50cm | £260.00 |
| Baffle and Getty Print | 65cm x 50cm | £455.00 |
Specifications
Transducer
LF-MF 1 x 3 inch cone
HF 1 x 1 inch Dual Ring Radiator, Symmetric Phase Aligned
Crossover
Low Pass Filter 6 dB/octave 1000 Hz High Pass
12 dB/octave 4000Hz
Connection
Single amped Gold Plated Push Terminals
Performance
Operating Range 65 Hz (-3dB) to 40 kHz
Nominal Beamwidth Horizontal 90° Vertical 90°
Axial Sensitivity (whole space SPL) LF/MF-HF 87 dB
Input Impedance Nominal Minimum 8 ohms
Recommended High Pass Filter =>80 Hz, 24 dB/octave
Maximum Power Handling 50 Watt
Calculated Axial Output Limit (whole space SPL) Average Peak LF/MF-HF 104dB
Weight 2.2 kg
Dimensions H: 100 W: 250 D: 60 mm
Finish
Silk Paint, Black, White and RAL colours
Grille options: Match System fabrics
Optional Baffles: Match System and Digital Print
