Sonance Visual Performance VP86S 8″ square speaker (pair)

Sonance Visual Performance VP86S 8″ square speaker (pair)

Call for Price

From the company that invented the category, comes the best sounding, best looking and most complete range of in-wall and in-ceiling speakers ever. Visual Performance® Series comes in various shapes and sizes to compliment down lights and décor and a complete range that allows you to enjoy a consistent aesthetic for any application in any room.

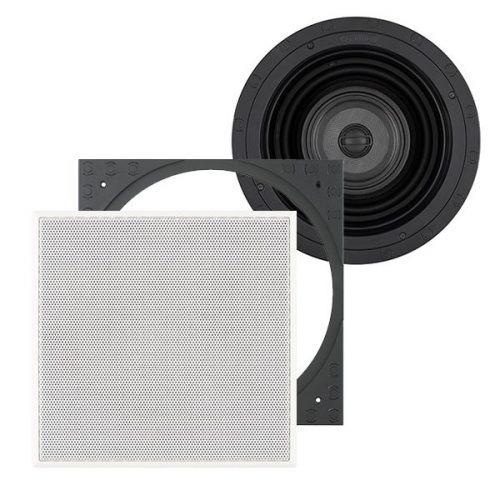

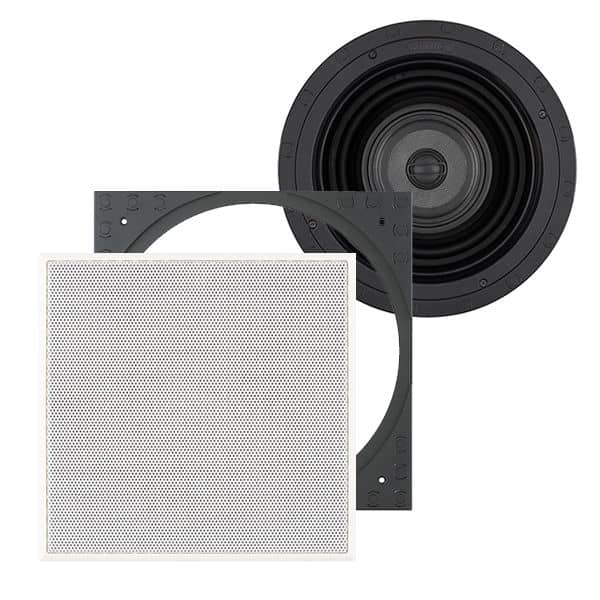

N.B. Square speakers are supplied as round speakers + square adapter and grille.

Description

Absolute best sonic performance at all price points

  • Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
  • Pivoting woofer, midrange, and tweeter for improved frequency response in off-axis installations

Latest high-tech driver and tweeter material technology

  • Improved low frequency performance
  • Improved driver cone materials
  • Low diffraction woofer, and midrange tweeter design
  • Pivoting drivers for improved frequency response in off-axis installations
  • Chambered midrange and tweeter design on all models

The chambered tweeter design does the following

  • Lowers the resonance frequency of the tweeter
  • Allows for a lower crossover frequency to the woofer
  • Reduces the back pressure on the tweeter dome
  • Reduces the distortion of the tweeter near the crossover frequency

Easier to install

  • Easier to access Roto-Lock® screws
  • Removed metal hang tabs
  • One-piece paintable grille with peel and stick scrim cloth for easier painting
  • Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials

Square adaptor w/ grille can turn any round speaker into a square speaker

  • Allows easy alignment of the square grille with other ceiling features
Tweeter 1″ (25mm) powder coated aluminium dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Midrange 4″ (102mm) Kevlar / Nomex laminated cone with a rubber surround, pivoting
Woofer 8″ (203mm) Kevlar / Nomex laminated cone with a rubber surround, pivoting
Frequency Response 34Hz – 20kHz ±3dB
Impedance 8 ohms nominal – 6 ohms minimum
Power Handling 5 watts minimum – 150 watts maximum
Sensitivity 91dB SPL (2.83V/1 meter)
Adjustments
Grille Perforated steel
Dimensions (Dia. x D) 11 5/8 x 5 7/8 (295mm x 149mm)
Dimensions with
Square Grille (W x H)
11 3/4″ x 11 3/4″ (299mm x 299mm)
Cut-Out Dimensions (Dia.) 10 1/8″ (257mm)
Shipping Weight 20 lbs (9kg) pair
