Description
Absolute best sonic performance at all price points
- Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance
- Pivoting woofer, midrange, and tweeter for improved frequency response in off-axis installations
Latest high-tech driver and tweeter material technology
- Improved low frequency performance
- Improved driver cone materials
- Low diffraction woofer, and midrange tweeter design
- Pivoting drivers for improved frequency response in off-axis installations
- Chambered midrange and tweeter design on all models
The chambered tweeter design does the following
- Lowers the resonance frequency of the tweeter
- Allows for a lower crossover frequency to the woofer
- Reduces the back pressure on the tweeter dome
- Reduces the distortion of the tweeter near the crossover frequency
Easier to install
- Easier to access Roto-Lock® screws
- Removed metal hang tabs
- One-piece paintable grille with peel and stick scrim cloth for easier painting
- Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials

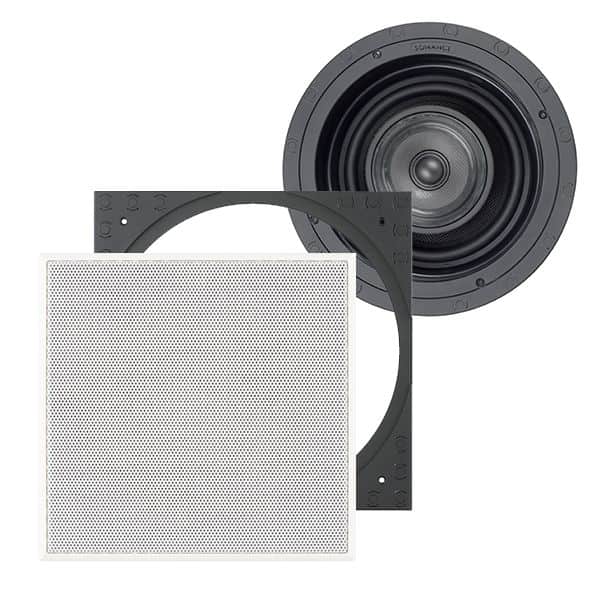

Square adaptor w/ grille can turn any round speaker into a square speaker
- Allows easy alignment of the square grille with other ceiling features
Tweeter | 1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber |
Midrange | 4″ (102mm) textured polypropylene cone with a rubber surround, pivoting |
Woofer | 8″ (203mm) textured polypropylene cone with a rubber surround, pivoting |
Frequency Response | 38Hz – 20kHz ±3dB |
Impedance | 8 ohms nominal – 6 ohms minimum |
Power Handling | 5 watts minimum – 125 watts maximum |
Sensitivity | 90dB SPL (2.83V/1 meter) |
Adjustments | – |
Grille | Perforated steel |
Dimensions (Dia. x D) | 11 5/8″ x 5 7/8″ (295mm x 149mm) |
Dimensions with Square Grille (W x H) |
11 3/4″ x 11 3/4″ (299mm x 299mm) |
Cut-Out Dimensions (Dia.) | 10 1/8″ (257mm) |
Shipping Weight | 20 lbs (9kg) pair |
