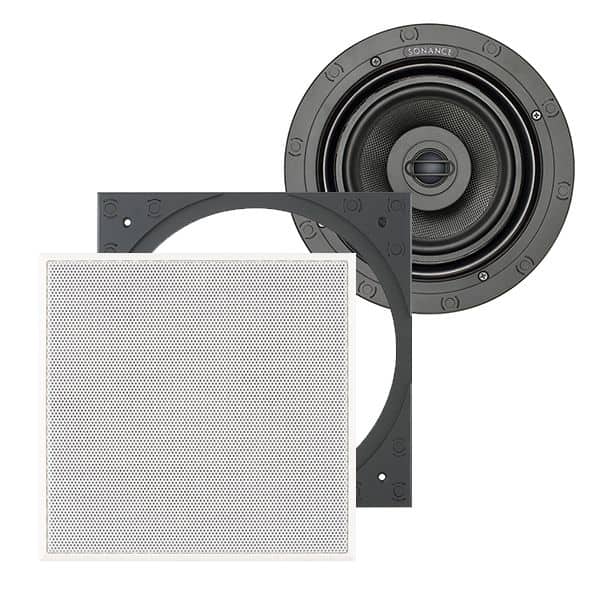

Sonance Visual Performance VP66S 6″ square speaker (pair)

Sonance Visual Performance VP66S 6″ square speaker (pair)

Call for Price


Absolute best sonic performance at all price points

  • Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance

Latest high-tech driver and tweeter material technology

  • Improved low frequency performance
  • Improved driver cone materials
  • Low diffraction woofer and tweeter design
  • Pivoting woofer and tweeter for improved frequency response in off-axis installations
  • Chambered tweeter design on all models

The chambered tweeter design does the following

  • Lowers the resonance frequency of the tweeter
  • Allows for a lower crossover frequency to the woofer
  • Reduces the back pressure on the tweeter dome
  • Reduces the distortion of the tweeter near the crossover frequency

Easier to install

  • Easier to access Roto-Lock® screws
  • Removed metal hang tabs
  • One-piece paintable grille with peel and stick scrim cloth for easier painting
  • Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials

Square adaptor w/ grille can turn any round speaker into a square speaker

  • Allows easy alignment of the square grille with other ceiling features


Tweeter 1″ (25mm) powder coated aluminium dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer 6 1/2″ (165mm) Kevlar / Nomex laminated cone with a rubber surround, pivoting
Frequency Response 43Hz – 20kHz ±3dB
Impedance 8 ohms nominal – 6 ohms minimum
Power Handling 5 watts minimum – 140 watts maximum
Sensitivity 90dB SPL (2.83V/1 meter)
Grille Perforated steel
Dimensions (Dia. x D) 9 3/4″ x 4 3/4″ (248mm x 121mm)
Dimensions with
Square Grille (W x H)
9 7/8″ x 9 7/8″ (251mm x 251mm)
Cut-Out Dimensions (Dia.) 8 1/4″ (210mm)
Shipping Weight 10 lbs (4.5kg) pair
