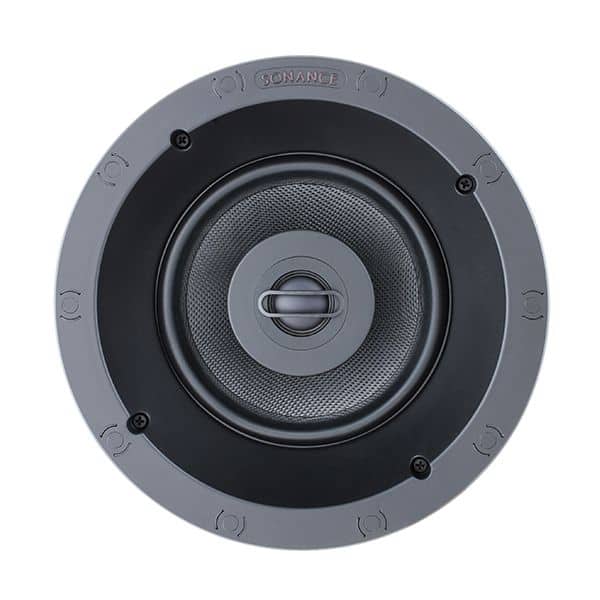

Sonance Visual Performance VP66RTL 6″ round thinline speaker (pair)

Call for Price

Visual Performance ThinLine speakers feature shallow depths that allow installation in areas that will not accommodate conventional speakers.

Absolute best sonic performance at all price points

  • Designed using state-of-the-art computer modeling software to vastly improve magnetic field and suspension linearity for consistent sonic performance at any SPL for best-in-class performance

Latest high-tech driver and tweeter material technology

  • Improved low frequency performance
  • Improved driver cone materials
  • Low diffraction woofer and tweeter design
  • Pivoting tweeter for improved frequency response in off-axis installations
  • Chambered tweeter design on all models

The chambered tweeter design does the following

  • Lowers the resonance frequency of the tweeter
  • Allows for a lower crossover frequency to the woofer
  • Reduces the back pressure on the tweeter dome
  • Reduces the distortion of the tweeter near the crossover frequency

Easier to install

  • Easier to access Roto-Lock® screws
  • Removed metal hang tabs
  • One-piece paintable grille with peel and stick scrim cloth for easier painting
  • Two piece toggle feet allows installation with double dry wall and thicker ceiling and wall materials
Tweeter 1″ (25mm) powder coated aluminium dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer 6 1/2″ (165mm) Kevlar / Nomex laminated cone with a rubber surround
Frequency Response 43Hz – 20kHz ±3dB
Impedance 8 ohms nominal – 6 ohms minimum
Power Handling 5 watts minimum – 140 watts maximum
Sensitivity 90dB SPL (2.83V/1 meter)
Grille Perforated steel
Dimensions (Dia. x D) 9 3/4″ x 3 5/32″ (248mm x 80mm)
Dimensions with
Square Grille (W x H)
9 7/8″ x 9 7/8″ (251mm x 251mm)
Cut-Out Dimensions (Dia.) 8 1/4″ (210mm)
Shipping Weight 9 lbs (4.1kg) pair
