Description

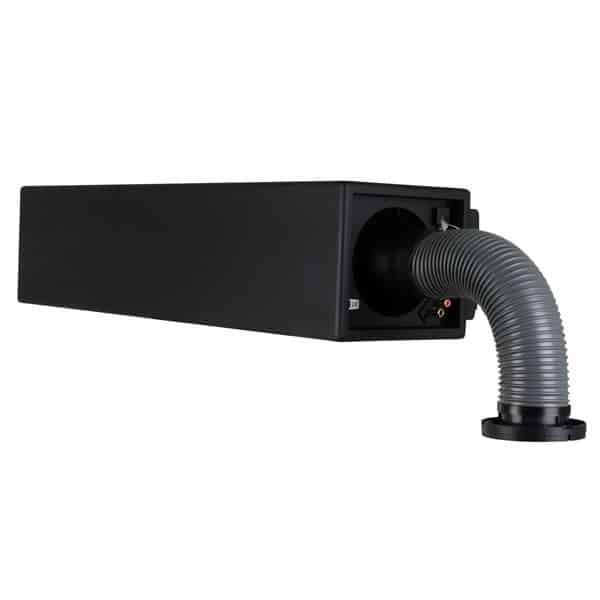

- Delivers powerful, room-filling bass through a small grille that complements the room’s architectural design.
- Trimless and truly flush-mount installation — the plane of the subwoofer grille is perfectly aligned with the plane of the ceiling.
- Required Bandpass Connectors allow the BPS-1 to be used with any size round or square Architectural Series bracket to match other Architectural Series speakers in the space. The Bandpass Connectors are heavily flared to minimize port noise during high-volume passages.
- Engineered to provide years of reliable high-power operation, the BPS-1 features a woofer with a felted paper cone with a rubber surround. The required Sonamp® A150 is designed to protect the speaker from damage. This ensures the BPS-1 can be installed in a location that will have limited or no access without the need for maintenance.
- The very efficient 4th-order bandpass enclosure produces high output over the subwoofer’s entire frequency range.
- The BPS-1 can be used with any separately-available Architectural Series round and square finish component: metal (with or without trim) or cloth (with or without trim).
| Specifications | |
| Maximum Continuous RMS Power At Clipping |
90 watts |
| Power output (program) | 150 watts |
| Signal-to-noise ratio | -95dB |
| Auto-on trigger sensitivity | 10mV |
| Low-pass crossover frequency (BYPASS switch off) |
40Hz ~ 150Hz (variable), 12dB/octave |
| Low-pass crossover frequency (BYPASS switch on) |
150Hz (fixed), 12dB/octave |
| Hi level out hi-pass filter | -3dB @ 200Hz, 6dB/octave |
| Line level out hi-pass filter | -3dB @ 200Hz, 6dB/octave |
| Controls | Variable crossover frequency, variable output level, phase switch, bypass switch |
| Power consumption | 13w (idle); 160w (max power) |
| Enclosure Dimensions (W x H x D) |
9” x 11” x 39 1/2″ (229mm x 279mm x 1283mm) |
| Minimum Mounting Area (W x H x D) |
9 1/8” x 11” x 53 1/4″ (232mm x 279mm x 1352mm) |
| Shipping Weight | 46 lbs (20.9kg) each |
PLEASE NOTE: This product requires a Sonamp A150 amplifier (Code: SON-92477).
