Call for Price

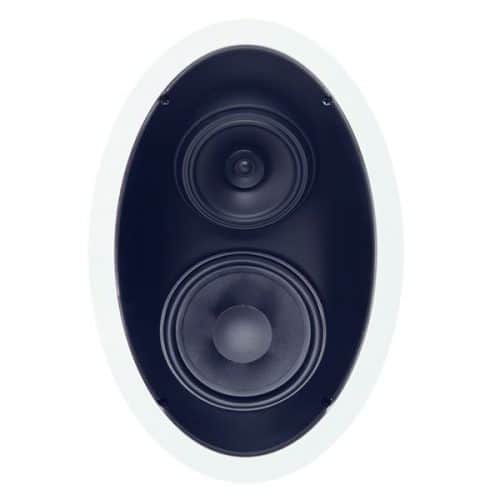

Ellipse in-ceiling speakers are designed specifically for home theatre surround sound. Innovative elliptical design and pivoting midrange and tweeter array allows sound to be directed towards the listening position eliminating perceived out-of-sync between picture and sound. The Ellipse LRC can be placed anywhere from 8′ to 18′ (2.4m to 5.5m).
The Ellipse speaker features the best of Sonance custom install benefits including Sonic Eye, FlexBar and phenomenal sound!
Sonic Eye is recessed in the baffle, allowing the concentrically mounted midrange and tweeter to pivot up to 20 degrees in any direction.
| Specifications | |
| Tweeter | 1/2″ (13mm) cloth dome pivoting |
| Midrange | 4″ (102mm) polypropylene cone pivoting |
| Woofer | 6 1/2″(165mm) black woven glass fiber cone with a rubber surround |
| Frequency Response | 50Hz – 20kHz ±3dB |
| Power | 5 watts minimum; 125 watts maximum |
| Sensitivity | 89dB (2.83V/1 meter) |
| Impedance | 8 ohms nominal; 6 ohms minimum |
| Grille | Perforated aluminium |
| Dimensions (WxHxD) | 10 1/2″ x 15 1/2″ x 5 7/8″ (267mm x 394mm x 149mm) |
| Cut-Out Dimensions (WxH) | 9″ x 13 7/8″ (171mm x 353mm) elliptical |
For help and advice on choosing the right home entertainment system for you, get in touch with the experts at Rococo Systems.
