MLS – Heavy Duty TV Lift & Swivel

Call for Price

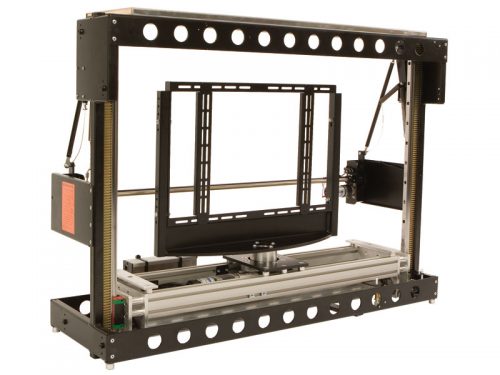

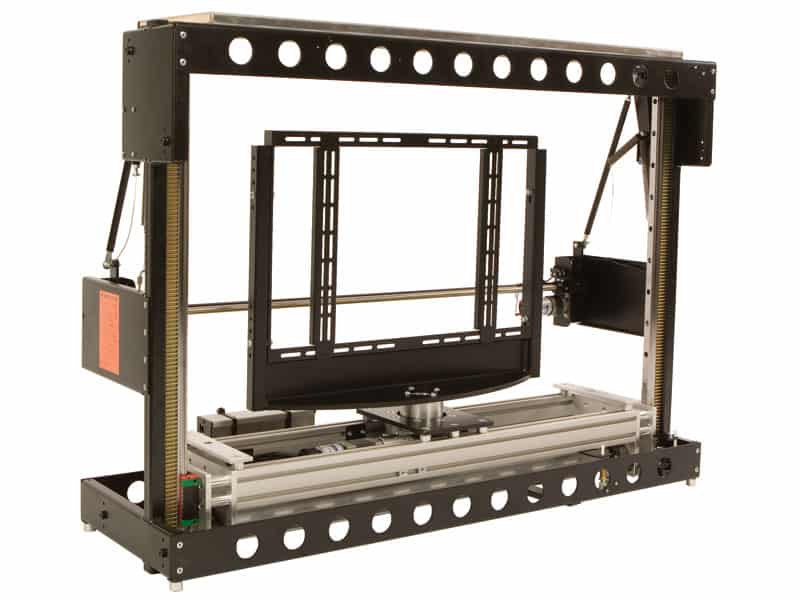

The Heavy Duty TV Lift and Swivel mechanism is a heavy duty lift mechanism with full bi-directional swivel that employs the same iconic drop and roll flap mechanism as the Plasma Lift Range . Built with a rack and pinion system, the elaborate guide system ensures a smooth and robust lifting action. The heavy duty swivel mechanism makes the product ideal for indoor marine applications and for large screens over 50” or where you wish to have a deep speaker or VC Camera mounted with the screen. (Without swivel see ML)

  • Unique drop and roll flap mechanism
  • Full Cable Management
  • Custom sized to suit exact size of screen
  • Accurate and smooth guide system
  • Positively driven rack system for secure and robust lifting
  • Custom frames for deeper screens and speakers
Max Screen Depth 140 mm
Max Weight 120 kg
Screen Sizes 40-75 “
Control Options RS232 / Contact Closure / IR
Movement Type Motorised
Shipping Dimensions Variable
Shipping Weight Variable
