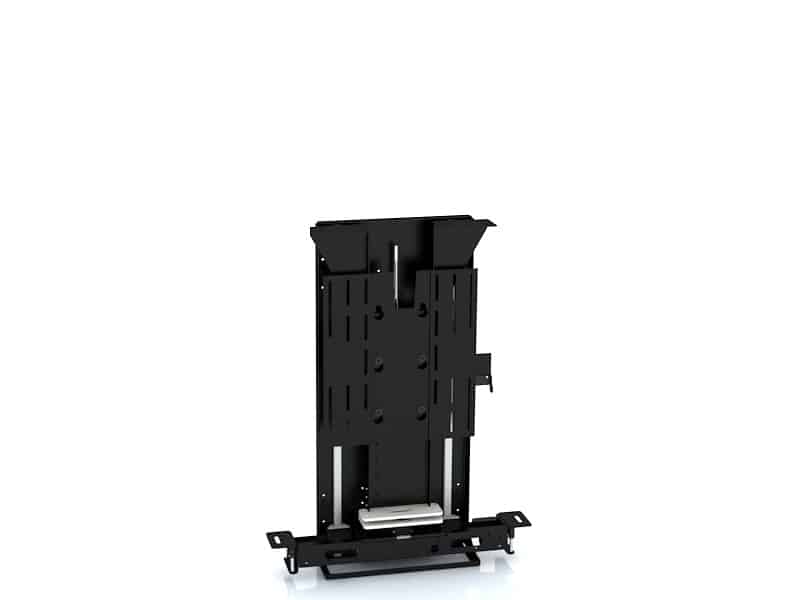

LSM-S-BE – Lift System Medium With Swivel

Call for Price

The LSM-SBE TV Lift mechanism is the perfect mechanism when a compact swivelling lift also requires a screen enclosure to hide the connections at the rear of the TV. Ideal for use when the rear of the TV lift can be seen in a room the LSM-S-BE allows the cabinet maker to include a matching screen surround into their furniture design. With a fully programmable swivel of up to 180° this is a practical mechanism when there are different viewing positions required in one room. For an LSM-S-BE without Swivel see the LSM-BE.

Availability:

Clear

Quiet and Smooth Action at Approximately 40mm(1.6″) per second
Full cable management
Wide range of mounting options
24V DC motor – suitable for direct DC supply
Marine suitable robust beam

	Colour	Screen Height	Max weight	Screen sizes	Control Options	Movement Type
LSM-S-BE3	BLACK	564mm	50 kg	37-40”	RS232/ Contact Closure/ IR	Motorised
LSM-S-BE4	BLACK	615mm	50 kg	42-46”	RS232/ Contact Closure/ IR	Motorised
LSM-S-BE5	BLACK	675mm	50 kg	48-50”	RS232/ Contact Closure/ IR	Motorised
LSM-S-BE6	BLACK	745mm	50 kg	50-55”	RS232/ Contact Closure/ IR	Motorised
LSM-S-BE7	BLACK	855mm	50 kg	50-65”	RS232/ Contact Closure/ IR	Motorised
