• Linn Klimax Chakra 500 Twin

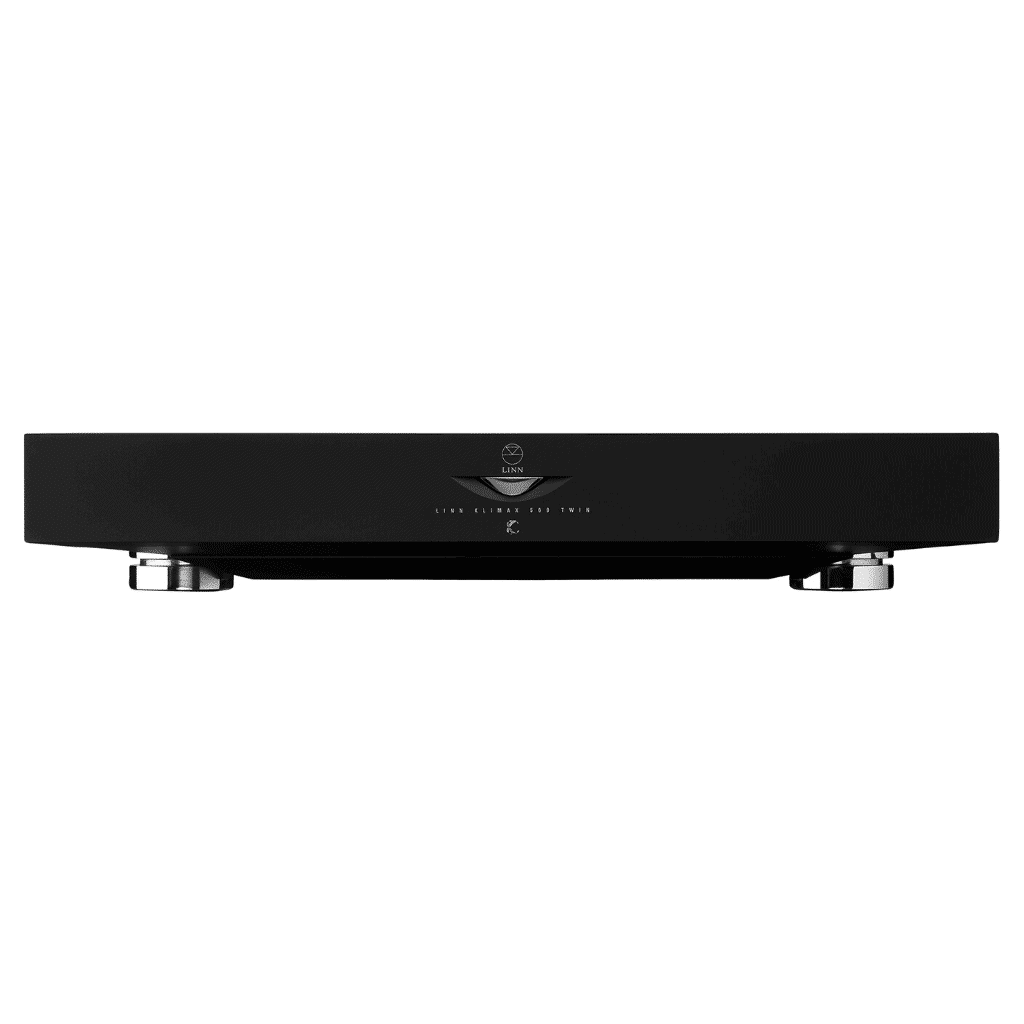

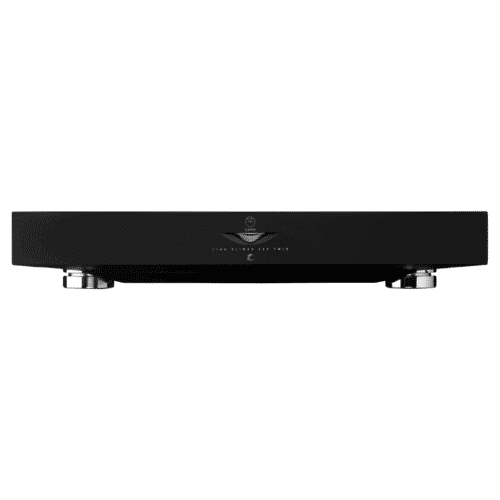

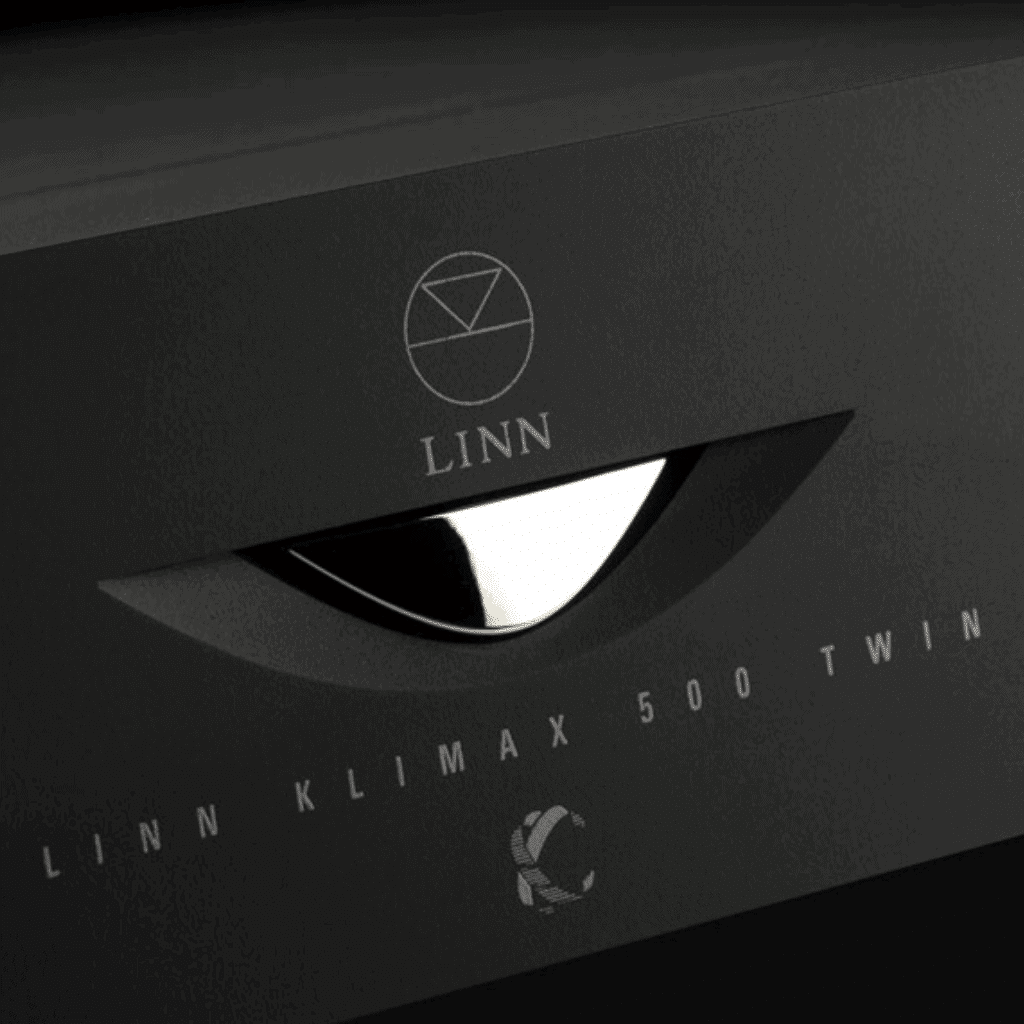

Linn Klimax Chakra 500 Twin

£7,700.00

The Linn Klimax Chakra 500 twin has been designed for use as a stereo amplifier but it can also be used in high performance multi-amplifier and multi-channel systems.



SKU: Klimax 500 Chakra Twin Categories: ,

Description

Linn Klimax Chakra 500 Twin

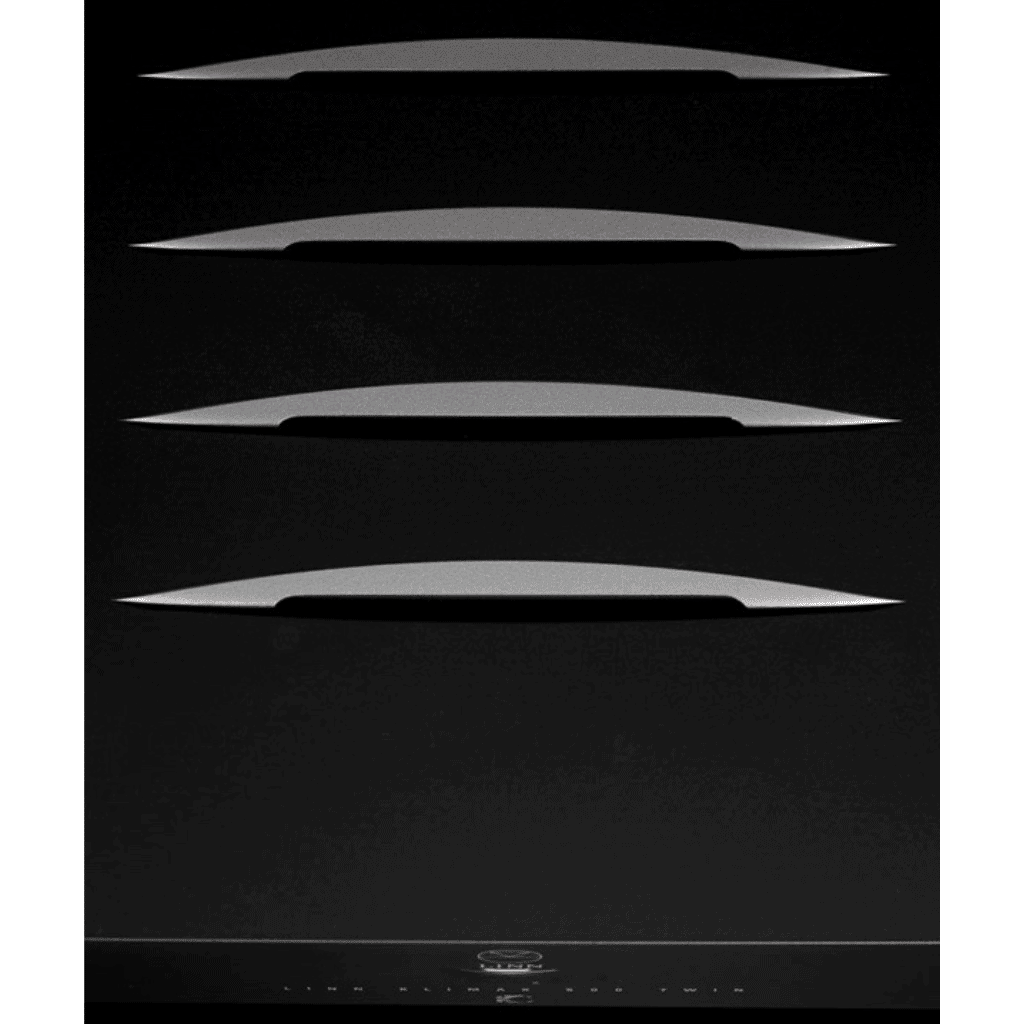

The Linn design team have created a slim and elegant ‘machined-from-solid’ aluminium chassis that contributes to the incredible performance of this product whilst looking fantastic in any environment.

Chakra 500 Twins can be wall mounted using Linn’s V-Klip system. This makes them perfect for limited space situations or for the instance where you don’t want your system to be visible.

Containing Linn’s new proprietary audio-optimised Switch Mode Power Supply to generate a stable, low noise power rail for the audio circuitry, with higher mains noise isolation and efficiency than the very bulky and noisy conventional power supplies, to ensure all you hear is music.

Featuring a simple but highly innovative design, perfected by Linn through precision engineering. It offers significantly increased power, reliability and efficiency, whilst at the same time producing less heat, less distortion and using fewer components. In short, Chakra amplifier topology is superior in every parameter through simplicity.

It also contains a balanced audio input for the best and most secure connection to your pre-amplifier. A balanced audio signal helps to remove unwanted current and noise for the highest possible sound quality.

Features:

—  CHAKRA* high-efficiency, ultra-linear audio circuitry

  Noiseless 4-G power supply

—  Matching Aktiv crossover system available

—  Cool running, sleek case machined from solid aluminium that isolates and screens circuitry

—  Automatic standby function with signal sensing circuitry

—  Mains supply that operates from 90 Vac to 253 Vac.

—  Neutrik Speakon four contact speaker sockets or 4 mm socket outputs

  Single-ended and balanced inputs, selected by switch on the back panel

Want to try before you buy? Click here to book an appointment with one of our Linn specialists to listen to our Linn Klimax Chakra 500 Twin today!

Additional information

Harmonic Distortion

0.01 %

Input Impedance Unbalanced

7k8 Ω

Type Reference

Quality Stereo Power Amplifier

Weight

9 kg / 19.8 lbs

Dimensions

W 350 mm x D 355 mm x H 60 mm

Standby power

13 W

Typical Operating Input Power

30 W
