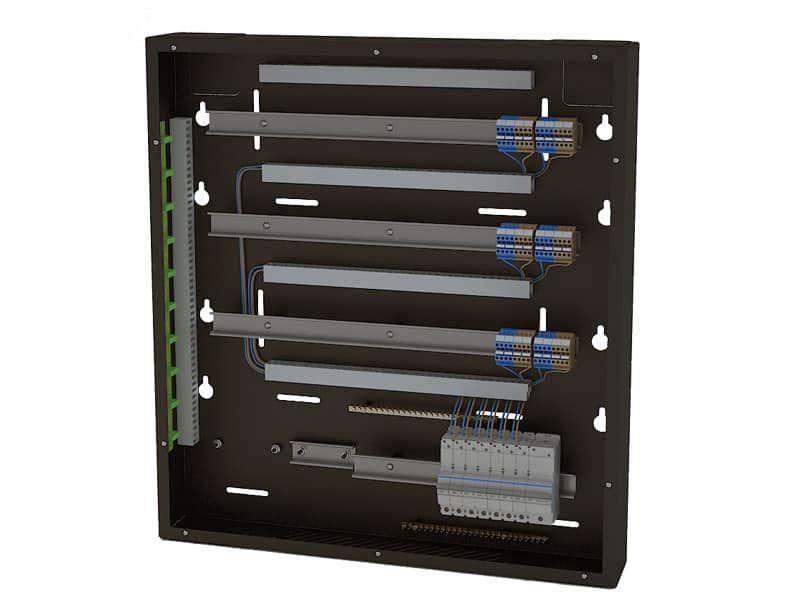

LCP-RCBO – Pre-wired Lutron Control Panel

£930.00£1,860.00

The LCP-RCBO is the pre-wired version of our Lutron DIN rail enclosure range (See LCP details). The LCP-RCBO has 10 Amp RCBOs fitted, a 100 Amp isolator switch and DIN rail terminal blocks. These are all pre wired and designed for ease of testing during installation.

For standard version without wiring and breakers see LCP

Clear
SKU: N/A Category:

Description

  • 10 Amp RCBOs
  • 100 Amp Isolator Switch
  • DIn Rail Terminal Blocks
  • Pre Wired
LCP4-6RCBO LCP5-8RCBO LCP6-10RCBO LCP7-12RCBO LCP7-3PH LCP8-14RCBO
COLOUR BLACK BLACK BLACK BLACK BLACK BLACK
DIN RAILS 4  5 6 7 7 8
MAX LUTRON MODULES 6 8 10 12 12 14
PANEL DIMENSIONS(HxWxD) 750 x 690 x 100 mm 900 x 690 x 100 mm 1050 x 690 x 100 mm 1200 x 690 x 100 mm 1200 x 690 x 100 mm 1350 x 690 x 100 mm
DEPTH FROM WALL 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm
SHIPPING DIMESNIONS 1170 x 830 x 220 mm 1170 x 830 x 220 mm 1170 x 830 x 220 mm 1470 x 830 x 220 mm 1470 x 830 x 220 mm 1470 x 830 x 220 mm
SHIPPING WEIGHT 26 kg 28 kg 34 kg 37 kg 38 kg 41 kg

Additional information

Availability:

LCP4-6RCBO, LCP5-8RCBO, LCP6-10RCBO, LCP7-12RCBO, LCP7-3PH, LCP8-14RCBO
