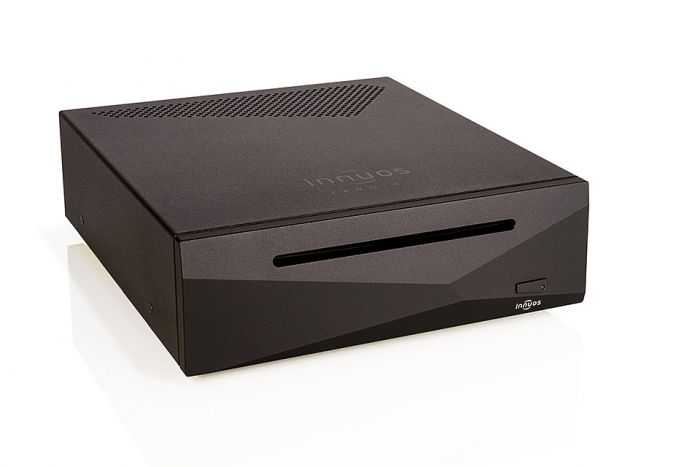

Innuos Zen Mini Mk3

Innuos Zen Mini Mk3

Innuos Zen Mini Mk3 is perfect if you are looking for a tidy solution for all your CDs and the files laying around on the computer? Need an easy way to stream and listen to all your favourite music? Now there’s a simple way to store, manage and play all of it: the ZENmini. Convenient Design With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs – from CD ripping to purchased downloads, Internet Radio to Spotify Connect. Hi-Fi Engineering The ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives. Perfect CD Player replacement Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favourite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way. Powerful Performer Using our own exclusive innuOS operating system, our servers are configured and optimised from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.

Innuos ZEN MINI Mk3

• CD Ripper, NAS and Streamer
• Compact design with quiet, fanless operation
• Versatile HiFi connectivity with analog and digital outputs
• Roon Core and Endpoint
• Custom audio treated components
• Upgradeable with Linear Power Supply



AUDIO OUTPUTS
Digital Output	USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
	Coaxial S/PDIF up to 24bit/192KHz
	Optical S/PDIF up to 24bit/192KHz
Analogue Output	RCA Analogue up to 24bit/192KHz
	CONNECTIVITY
Ethernet	2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB	4x USB 3.0
	FORMATS
CD Formats	Red Book
Disc Compatibility	CD, CD-R, CD-RW
Audio format for stored CDs	FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing	WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs
	SAMPLE RATES
Sample Rates	44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
Bit Depths	16bit, 24bit, 32bit
	USER CONTROL INTERFACES
Web Interface	Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile	App for iPhone/iPad, Android and Windows 10
	HARDWARE
CD/DVD drive	TEAC Slot-loading drive
Hard Drive	2TB WD Red HDD
CPU	Intel Quad Core N4200
Memory	4GB DDR3
	STREAMING AND CD STORAGE
UPnP/DLNA	Integrated UPnP Server
Streaming Services	Qobuz, Spotify Connect, Tidal, Internet Radio
Roon Compatibility	Roon Core and Roon Bridge
Average CD Storage Time	5 minutes
CD Metadata	FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems	Sonos Multi-room Wireless Music System
	DLNA/UPnP compatible streamers
	USB DACs complying to USB Audio Class 2
	USB DACs supporting DSD over DoP protocol
	Selected USB DACs supporting Native DSD
	REQUIREMENTS
Network	Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
	Network router with at least one available ethernet port
	Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
Recommended App (USB Connection Only)	iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
	POWER
Mains Supply	Low ripple Power Adapter, 12V 5A, CEC Level V efficiency
Power Consumption	10W when idle, 15W peak
	PHYSICAL
Dimensions	74 x 214 x 240 mm (H x W x D)
Weight	4,5 Kg
In the box	Innuos ZENmini Mk3 2TB Music Server
	AC/DC Power Adapter
	Mains Cable
	2m Ethernet Cable
	Getting Started leaflet
