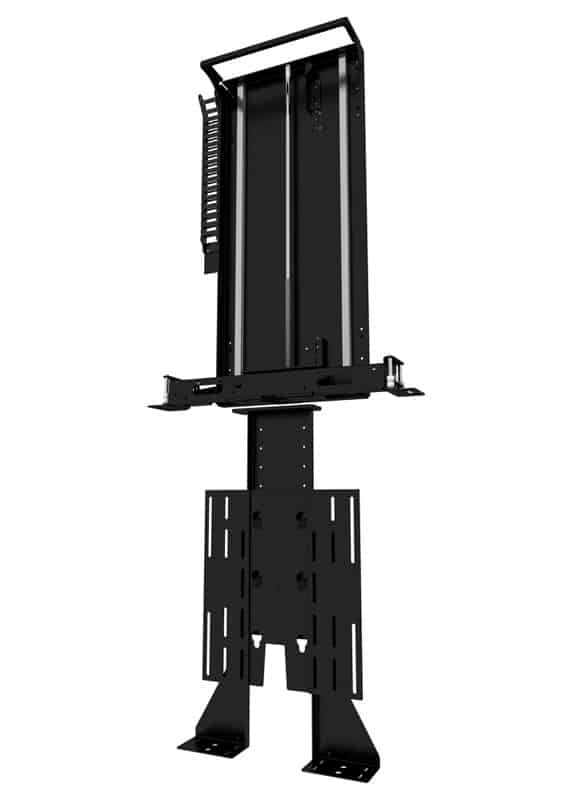

I-LSM-BE – Inverted TV Lift with Box Enclosure – 42-65″ Screens


The I-LSM-BE Inverted TV Lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing. The I-LSM-BE is the perfect mechanism when a compact lift also requires a screen enclosure to hide the connections at the rear of the TV, ideal for use when the rear of the TV can be seen in a room.

  • Quiet and Smooth Action at Approximately 40mm(1.6″) per second
  • Full Cable Management
  • Wide Range of Mounting Options
  • 24V DC Motor – Suitable for Direct DC Supply
  • Marine Suitable Robust Beam
Colour Black Black Black Black
Max Screen Height 675 mm 735 mm 805 mm 915 mm
Max Weight 50 kg 50 kg 50 kg 50 kg
Screen Sizes 42-50” 50-55” 55-60” 60-65”
Control Options RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR
Movement Type Motorised Motorised Motorised Motorised
