CHS – TV Ceiling Hinge with Swivel

£6,200.00£10,075.00

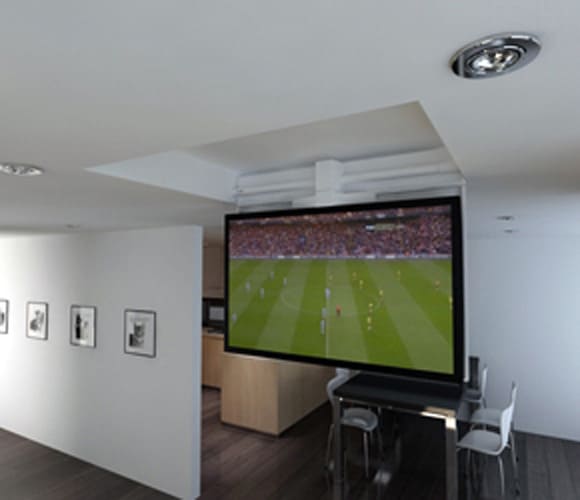

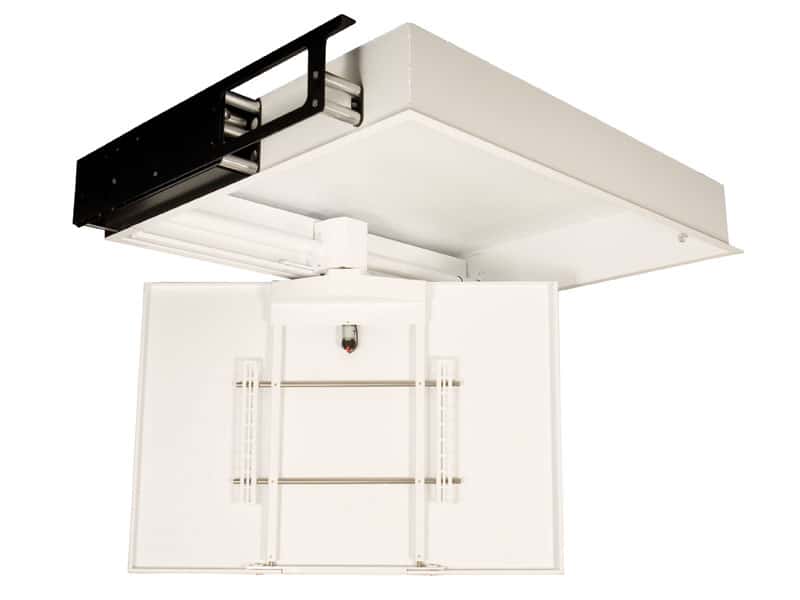

The TV Ceiling Hinge and Swivel allows a flat screen television to be concealed horizontally within a ceiling and then lowered into a room. The bi-directional swivel unit allows viewing in a number of positions and offers more flexibility in regard to location of installation. The near silent motor system adds to the effortless and smooth transition from the concealed to viewing position. Ideal for when there is limited ceiling void space, the TV Ceiling Hinge and Swivel allows large screens to be concealed unobtrusively within relatively small ceiling areas and offers a great space saving option for when floor or wall space is not available. (For CH without swivel – CH, with telescope – CHT)

Clear
SKU: N/A Category:

Description

  • Near Silent Motor System
  • Modular Format ensures simple installation
  • Range of standard sizes
  • Sized to suit Options available
  CHS3 CHS4 CHS5 CHS6
Colour White White White White
Height Within Ceiling 213 mm 213 mm 213 mm 213 mm
Max Rotation Each Way 180 ° Each Way 180 ° Each Way 180 ° Each Way 180 °
Max Screen Height 580 mm 680 mm 780 mm 880 mm
Max Screen Width 910 mm 1110 mm 1310 mm 1510 mm
Max Screen Depth 140 mm 140 mm 140 mm 100 mm
Max Weight 50 kg 50 kg 50 kg 50 kg
Control Options RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR
Movement Type Motorised Motorised Motorised Motorised
Shipping Dimensions 1300 x 1140 x 500 mm 1300 x 1800 x 500 mm 1500 x 1900 x 500 mm 1550 x 2000 x 500 mm

Additional information

Availability:

CHS3, CHS4, CHS5, CHS6
