CH – TV Ceiling Hinge

  • CH-Lifestyle-1

CH – TV Ceiling Hinge

Call for Price

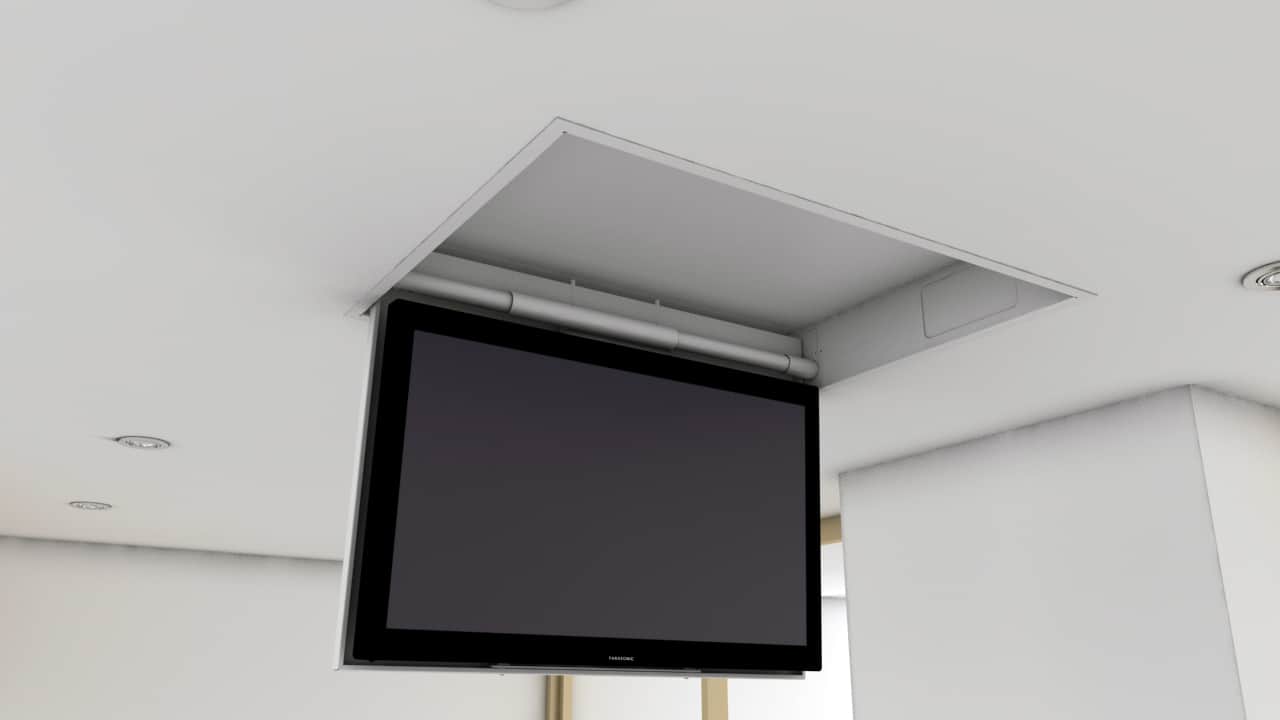

The TV Ceiling Hinge mechanism allows a flat screen television to be concealed horizontally within a ceiling and hinged down through 100 degrees for viewing. The near silent motor system adds to the effortless and smooth transition from the concealed to viewing position. Ideal for when there is limited ceiling void space, the TV Ceiling Hinge allows large screens to be concealed unobtrusively within relatively small ceiling areas and offers a great space saving option for when floor or wall space is not available. (For CH with swivel – CHS, with telescope – CHT)

(For a Ceiling Hinge with less required ceiling space see CHC)

SKU: N/A Categories: ,


  • Near Silent Motor System
  • Modular Format ensures simple installation
  • Range of standard sizes
  • Sized to suit Options available


Colour White White White White
Height Within Ceiling 213 mm 213 mm 213 mm 213 mm
Max Screen Height 620 mm 720 mm 820 mm 920 mm
Max Screen Width 910 mm 1110 mm 1310 mm 1510 mm
Max Screen Depth 140 mm 140 mm 140 mm 100 mm
Max Weight 50 kg 50 kg 50 kg 50 kg
Control Options RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR RS232 / Contact Closure / IR
Movement Type Motorised Motorised Motorised Motorised
Shipping Dimensions 1400 x 1100 x 500 mm 1550 x 1150 x 500 mm 1750 x 1350 x 500 mm 1970 x 1360 x 500 mm
Shipping Weight 80 kg 80 kg 100 kg 150 kg



Additional information


CH3, CH4, CH5, CH6
